2. Periodical check Field Service Ver. 1.0 Aug. 2005
4
PC-102/PC-202
Maintenance
NOTE
• Install the Separation Roller Assy while pressing the holder down so that it aligns
to the metal bracket of the machine.
• Make sure that the Separation Roller Assy is not tilted to the right or left when
installed.
NOTE
• Replace the Separation Roller Assy, Paper Take-up Roller and Pick-up Roller at the
same time.

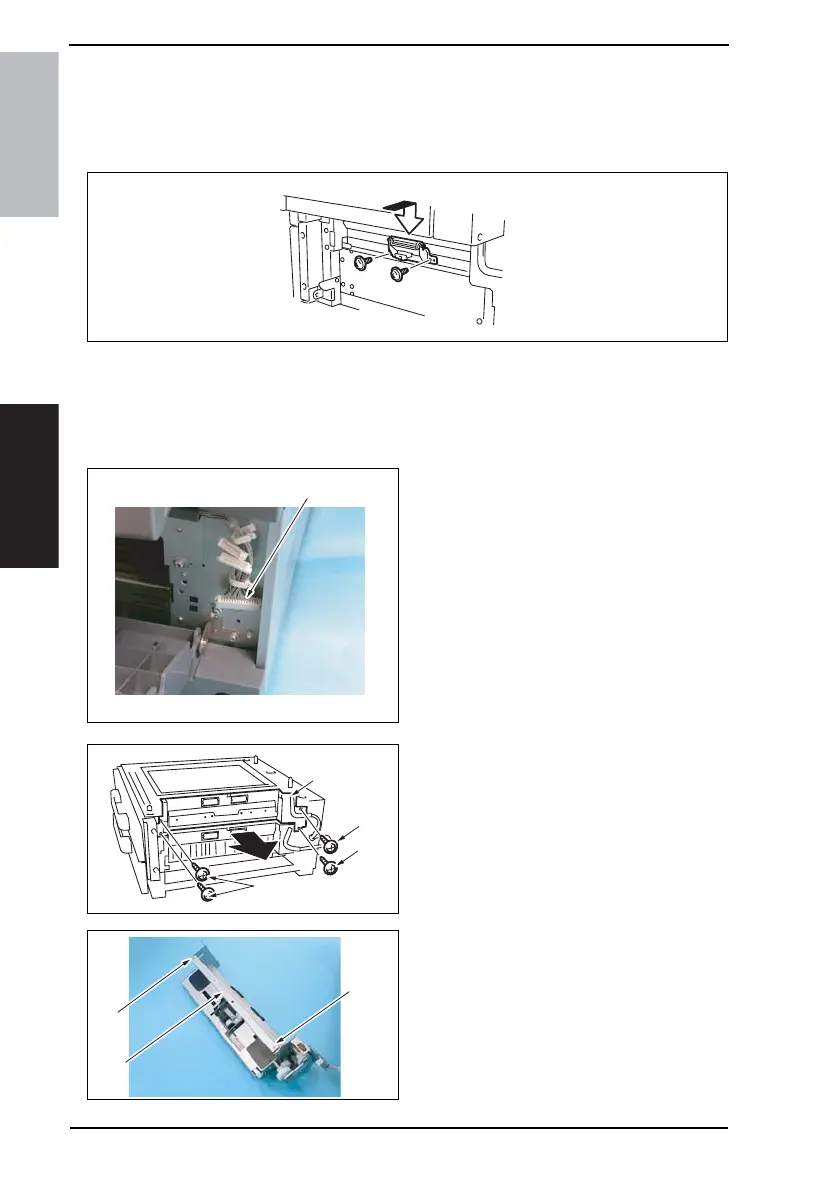

2.1.2 Replacing the Paper Take-up Roller
1. Remove the Rear Right Cover.
(Remove the Right Lower Cover for
4th row.)
☞ 10
2. Remove the Tray3. (Remove the
Tray4 from 4th row.)
3. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ See steps 1 to 3 of “Replacing the
Separation Roller Assy” on p. 3.
4. Disconnect the connector [1] and
remove the harness from two wire
saddles.
5. Remove four screws [2] and remove
the Paper Take-up Unit [3].
6. Remove two screws [4] and remove
the Mounting Frame [5] for the Paper
Separation Roller Mounting Bracket
Assy.
4348fs2623c0
4348F2C502DA
[1]
4348fs2603c0
[2]
[3]
[2]
[2]
4348fs2604c0
[4]
[4]
[5]
