Field Service Ver. 1.0 Aug. 2005 2. Periodical check
5
PC-102/PC-202Maintenance

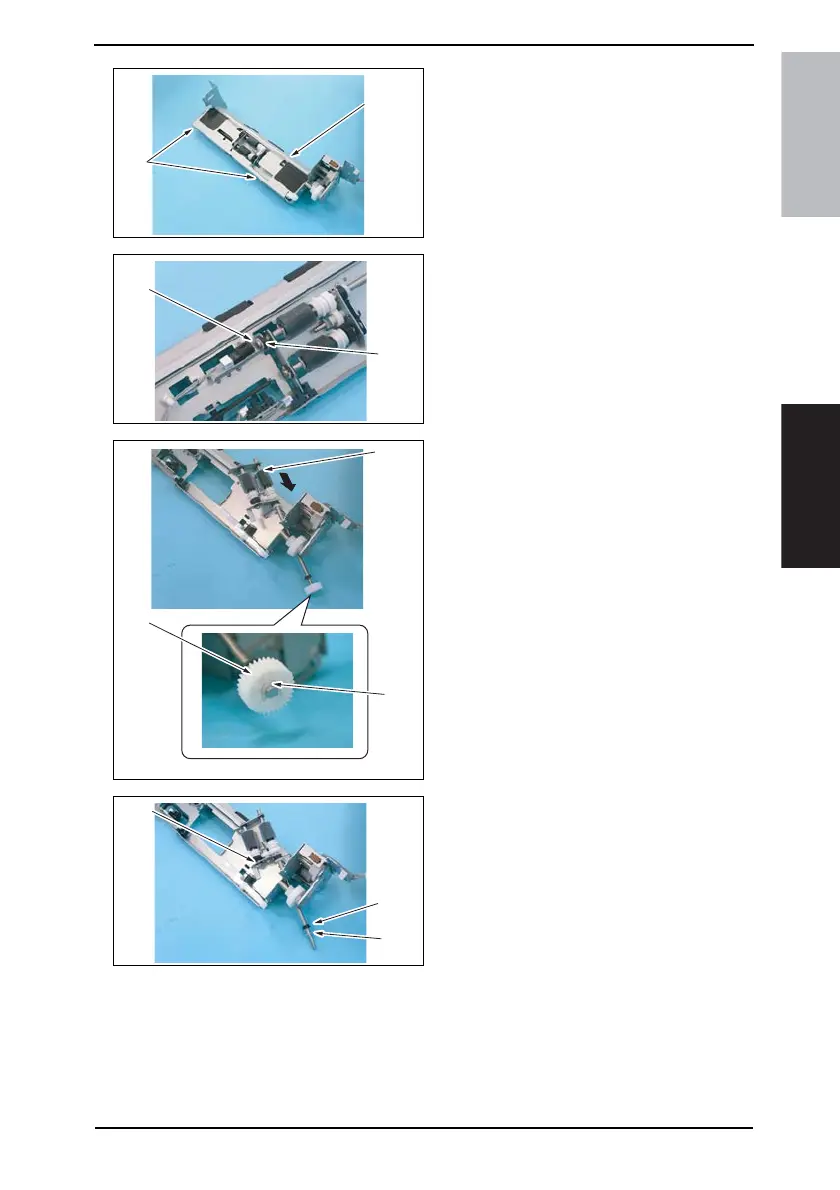

7. Remove two screws [6] and remove
the Paper Take-up Cover [7].
8. Remove the C-ring [8] and remove
the bushing [9].
9. Shift the Shaft Assy [10] in the orien-
tation as shown on the left, and
remove the C-ring [11] and the gear
[12].
10. Remove the C-ring [13], the bushing
[14], and remove the shaft Assy [15].
4348fs2605c0
[7]
[6]
4348fs2606c0
[9]
[8]
4348fs2607c0
[10]
[12]
[11]
4348fs2608c0
[13]
[15]
[14]
