23. Parts layout drawing Field Service Ver. 1.0 Aug. 2005
286
bizhub 200/250/350
Appendix

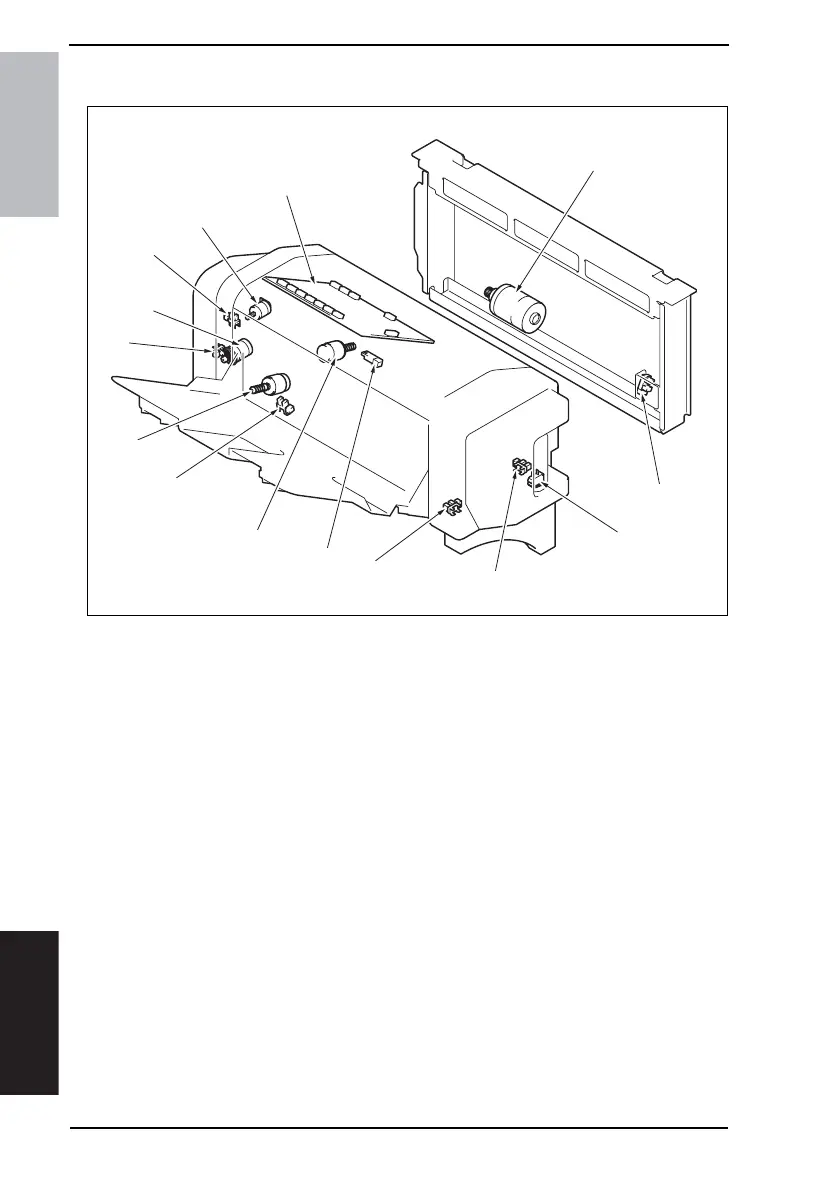

23.11 SD-502 (Option)
[1] Crease Motor (M10-SK) [8] Saddle Tray Empty Sensor (PC21-SK)
[2]
Crease Roller Home Position Sensor
(PC22-SK)
[9] In & Out Guide Motor (M13-SK)
[3] Saddle Interlock Switch (S4-SK) [10] Transport Pulse Sensor (PC25-SK)
[4] Layable Guide Home Sensor (PC26-SK) [11] Saddle Exit Motor (M8-SK)
[5] In & Out Guide Home Sensor (PC23-SK) [12]
Saddle Exit Roller Home Position Sensor
(PC18-SK)
[6] Saddle Exit Sensor (PC20-SK) [13] Saddle Exit Open/Close Motor (M9-SK)
[7] Layable Guide Motor (M14-SK) [14] Main Control Board (PWB-C SK)
4040F5C507DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[12]
[11]
[13]
[14]
