5. I/O check Field Service Ver. 1.0 Aug. 2005
18
PC-402
Adjustment / Setting
5. I/O check
5.1 Check procedure
• To allow sensors to be checked for operation easily and safely, data applied to the IC on
the board can be checked on the panel with the main unit in the standby state (including
a misfeed, malfunction, and closure failure condition).
<Procedure>
1. Display Tech. Rep. Mode.
☞ For details of how to display the Service Mode screen, see the Adjustment/Setting of
the main unit service manual.
2. Touch the [I/O Check].
3. Touch the [Printer].
4. Touch the [LCT].
5.2 I/O check list

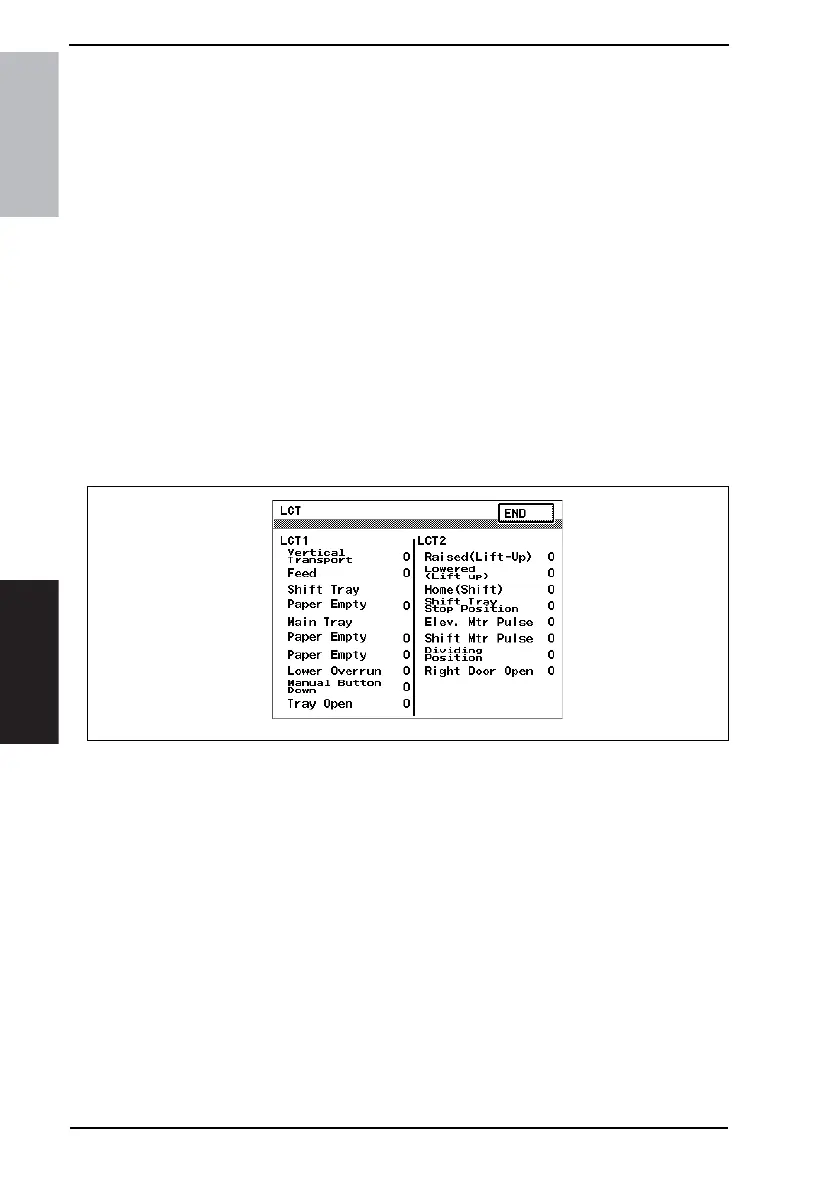

5.2.1 I/O check screen
• This is only typical screen which may be different from what are shown on each individ-
ual main unit.
4061F3E522DA
