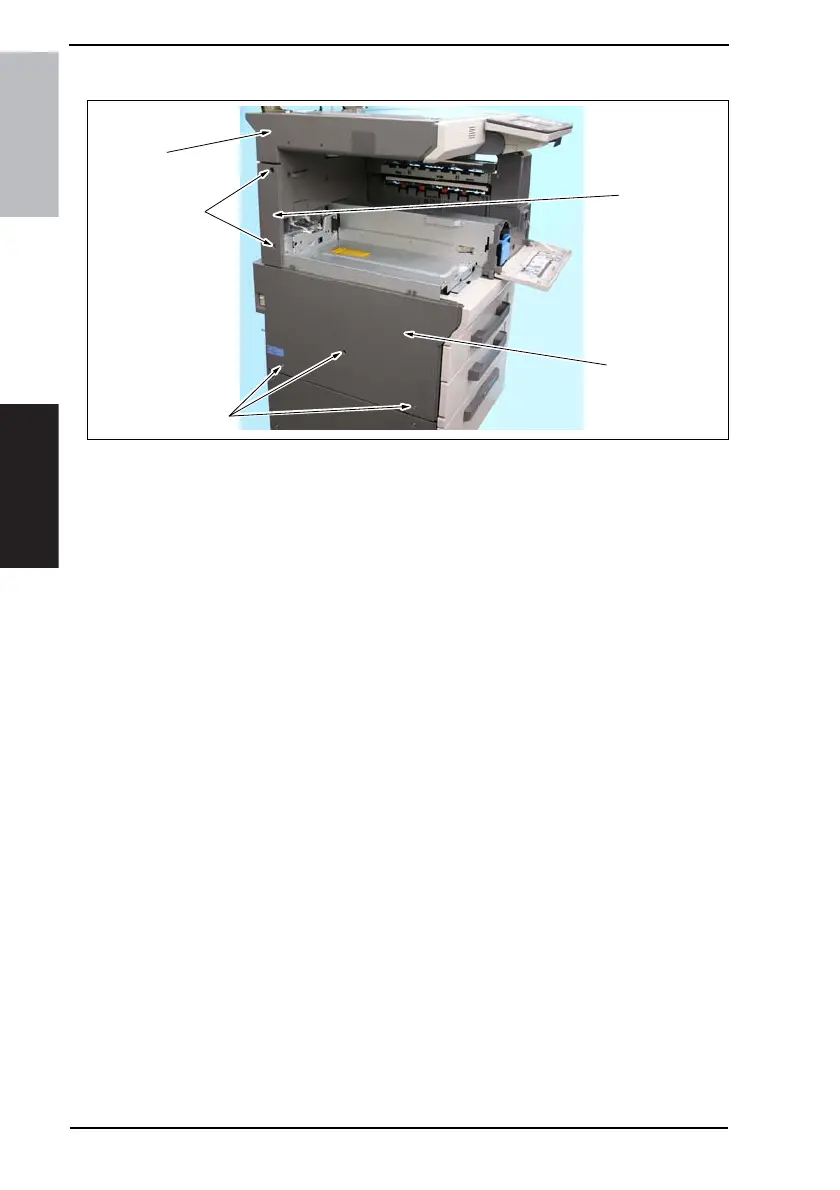

7.3.9 IR Left Cover/Rear Left Cover/Left Cover
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the IR Left Cover [1].
3. Remove two screws [2] and the Rear Left Cover [3].
4. Remove the Rear Cover.
☞ 51
5. Remove the Paper Output Cover.
☞ 52
6. Remove three screws [4] and the Left Cover [5].
4040F2C670DA
[1]
[2]
[3]
[5]
[4]
