Develop ineo 250 - Exit Paddle Drive Clutch

Field Service Ver. 1.0 Aug. 2005 4. Other
19
FS-508/PU-501/OT-601Maintenance

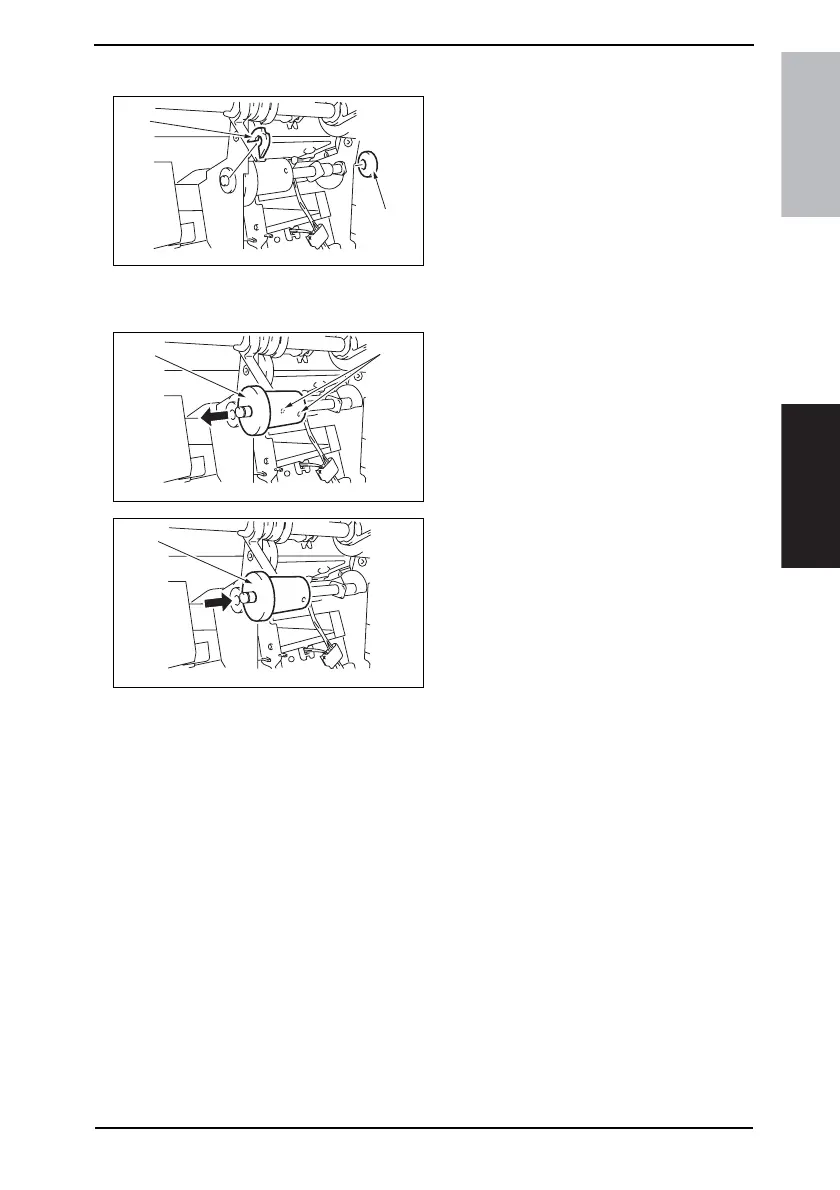

4.3.14 Exit Paddle Drive Clutch
A. Removal Procedure
1. Remove the Sorted Copy Tray.
☞ 15
2. Remove the Horizontal Transport
Unit.
☞ 15
3. Remove the Horizontal Transport
Upper Cover.
☞ 12
4. Remove the C-ring [1].
5. Remove the gear [2].
6. Loosen two hexagonal socket head
screws [3], and remove the Exit Pad-
dle Drive Clutch Assy [4].
B. Reinstallation Procedure
1. Reinstall the Exit Paddle Drive
Clutch Assy [1].
4349F2C526DA
[1]
[2]
4349F2C527DA
[3]
[4]
4349F2C528DA
[1]
