Develop ineo 250 - Replacing the Paper Take-Up Roller

2. Periodical check Field Service Ver. 1.0 Aug. 2005
4
PC-402
Maintenance
2.1.2 Replacing the Paper Take-up Roller
1. Remove the Rear Cover and the
Rear Right Cover.
☞ 10
2. Remove the Tray3.
3. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ See steps 1 to 2 of “Replacing the
Separation Roller” on p. 3.

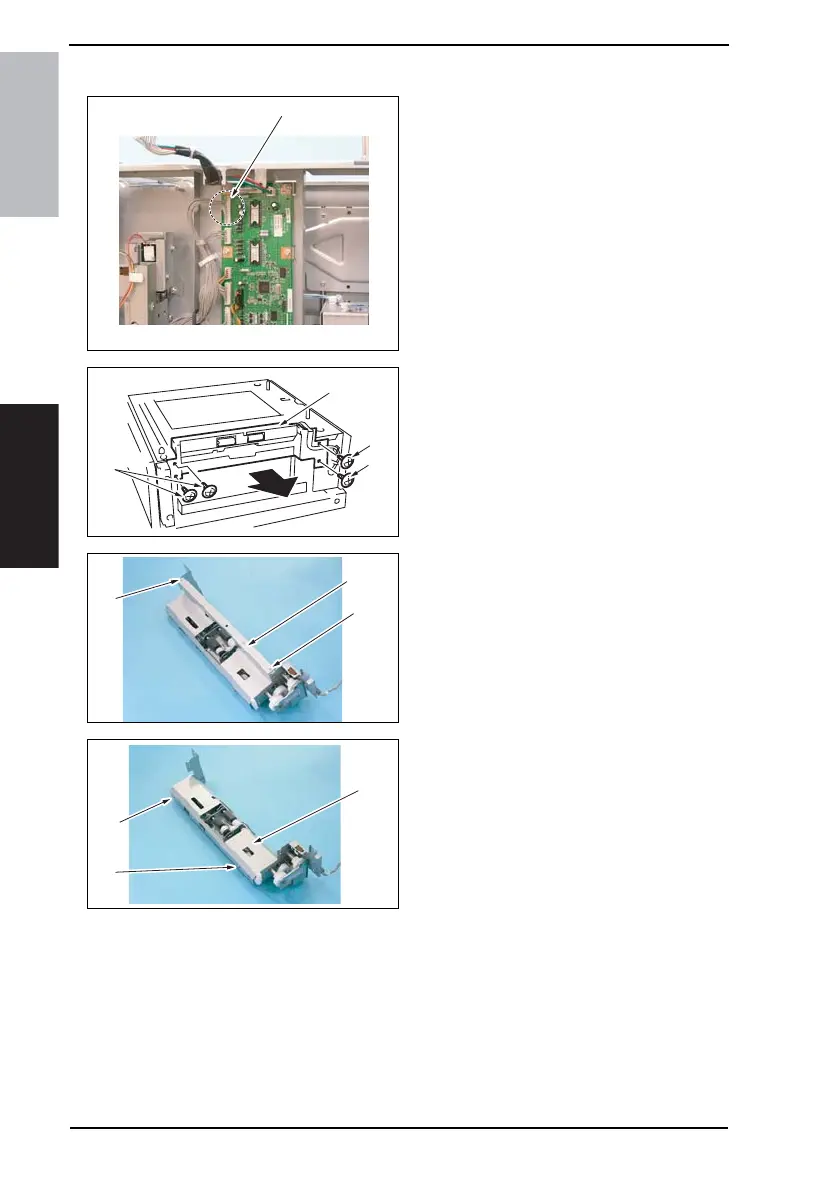

4. Disconnect the connector [1] from
the Main Control Board.
5. Remove four screws [2] and remove
the Paper Take-up Unit [3].
6. Remove two screws [4] and remove
the Mounting Frame [5] for the Paper
Separation Roller Mounting Bracket
Assy.
7. Remove two screws [6] and remove
the Paper Take-up Cover [7].
4348F2C501DA
[1]
4348fs2502c0
[2]
[3]
[2]
[2]
4348fs2503c0
[5]
[4]
[4]
4348fs2504c0
[6]
[6]
[7]
