Develop ineo 250 - Front Door; IR Right Cover;Rear Cover

Field Service Ver. 1.0 Aug. 2005 7. Other
51
bizhub 200/250/350Maintenance

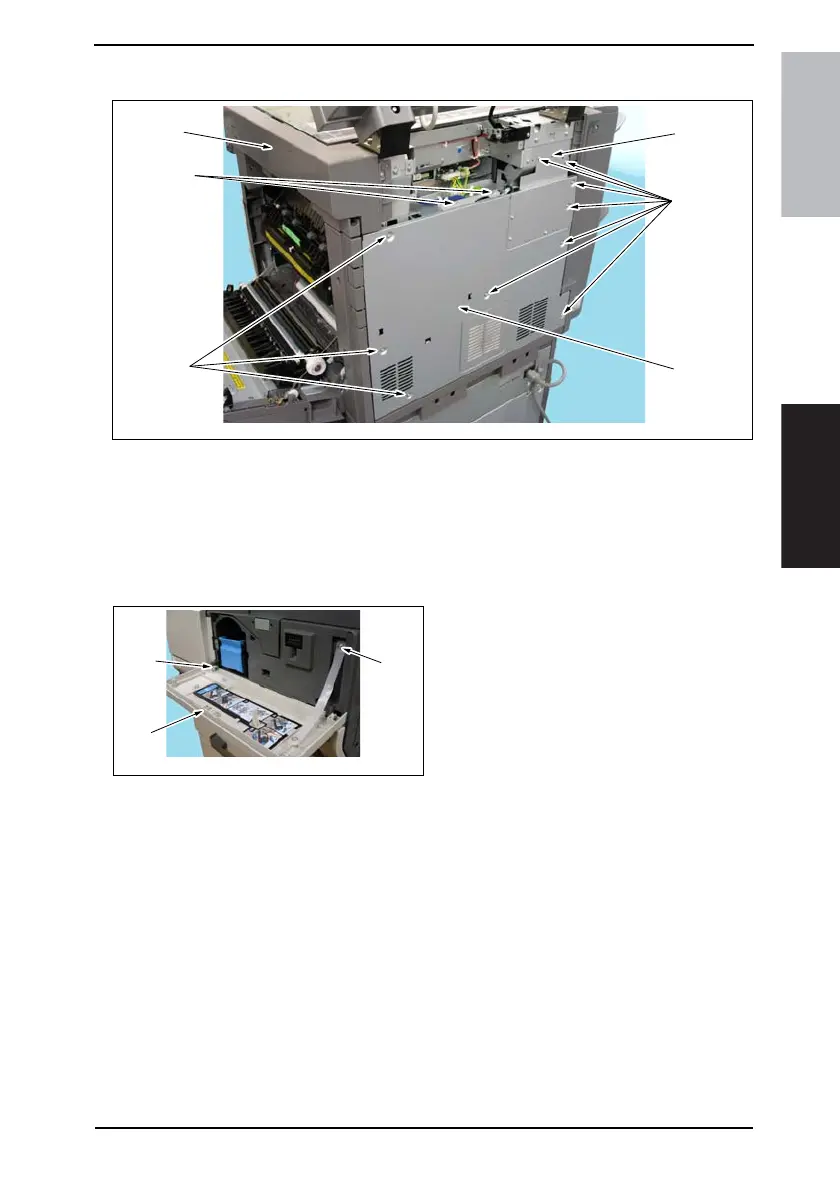

7.3.5 IR Right Cover/Rear Cover
1. Open the Right Door.
2. Remove the Upper Rear Cover.
☞ 50
3. Remove the IR Right Cover [1].
4. Remove thirteen Screws [2], and remove the Rear Cover [3].
7.3.6 Front Door
1. Open the Front Door [1].
2. Remove the screw [2], C-clip [3], and
the Front Door [1].
4040F2C664DA
[2]
[3]
[2]
[2]
[2]
[1]
4040F2C665DA
[2]
[3]
[1]
