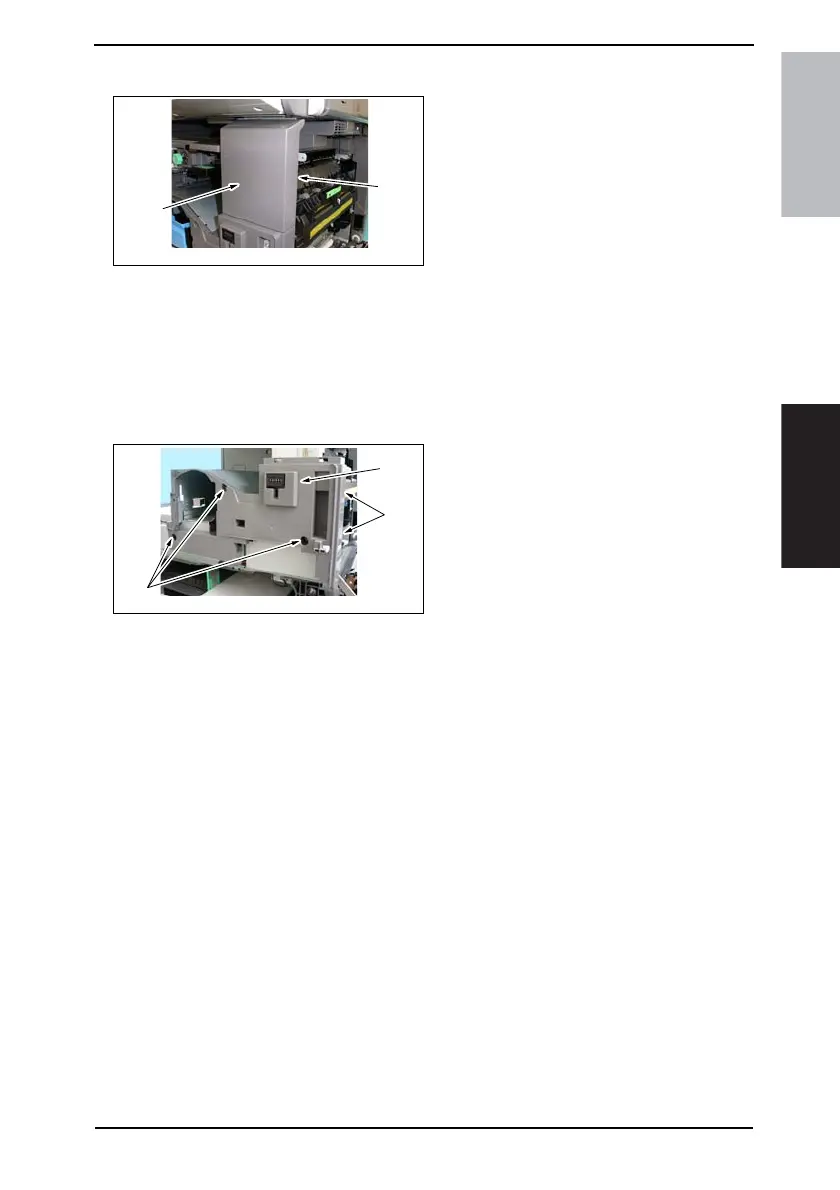

7.3.8 Upper Front Cover/Front Cover
1. Open the Right Door.
2. Remove the Front Right Cover.
☞ 50
3. Remove the screw [1] and the Upper
Front Cover [2].
4. Remove the Toner Hopper Unit.
☞ 74
5. Remove the Paper Output Cover.
☞ 52
6. Remove the Front Door.
☞ 51
7. Remove the Lower Front Cover.
☞ 52
8. Remove five screws [3] and the Front
Cover [4].
4040F2C667DA
[1]
[2]
4040F2C669DA
[3]
[4]
[3]
