2. Periodical check Field Service Ver. 1.0 Aug. 2005
6
PC-402
Maintenance

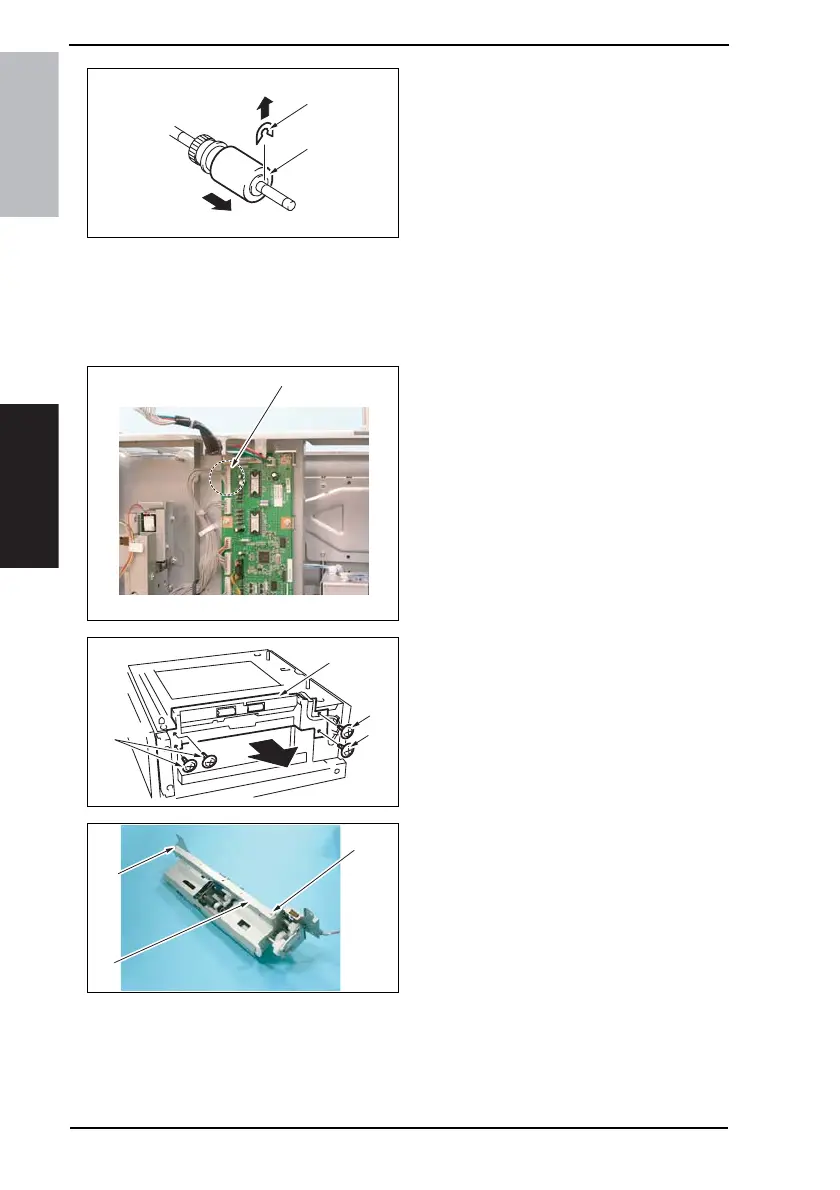

12. Remove the C-ring [16] and remove
the Paper Take-up Roller [17].
NOTE
• Replace the Separation Roller Assy, Paper Take-up Roller and Pick-up Roller at the
same time.
2.1.3 Replacing the Pick-up Roller
1. Remove the Rear Cover and the
Rear Right Cover.
☞ 10
2. Remove the Tray3.
3. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ See steps 1 to 2 of “Replacing the
Separation Roller” on p. 3.
4. Disconnect the connector [1] from
the Main Control Board.
5. Remove four screws [2] and the
Paper Take-up Unit [3].
6. Remove two screws [4] and remove
the Paper Separation Roller Mount-
ing Bracket Assy [5] together with
frame.
4348fs2508c0
[16]
[17]
4348F2C501DA
[1]
4348fs2502c0
[2]
[3]
[2]
[2]
4348fs2516c0
[4]
[5]
[4]
