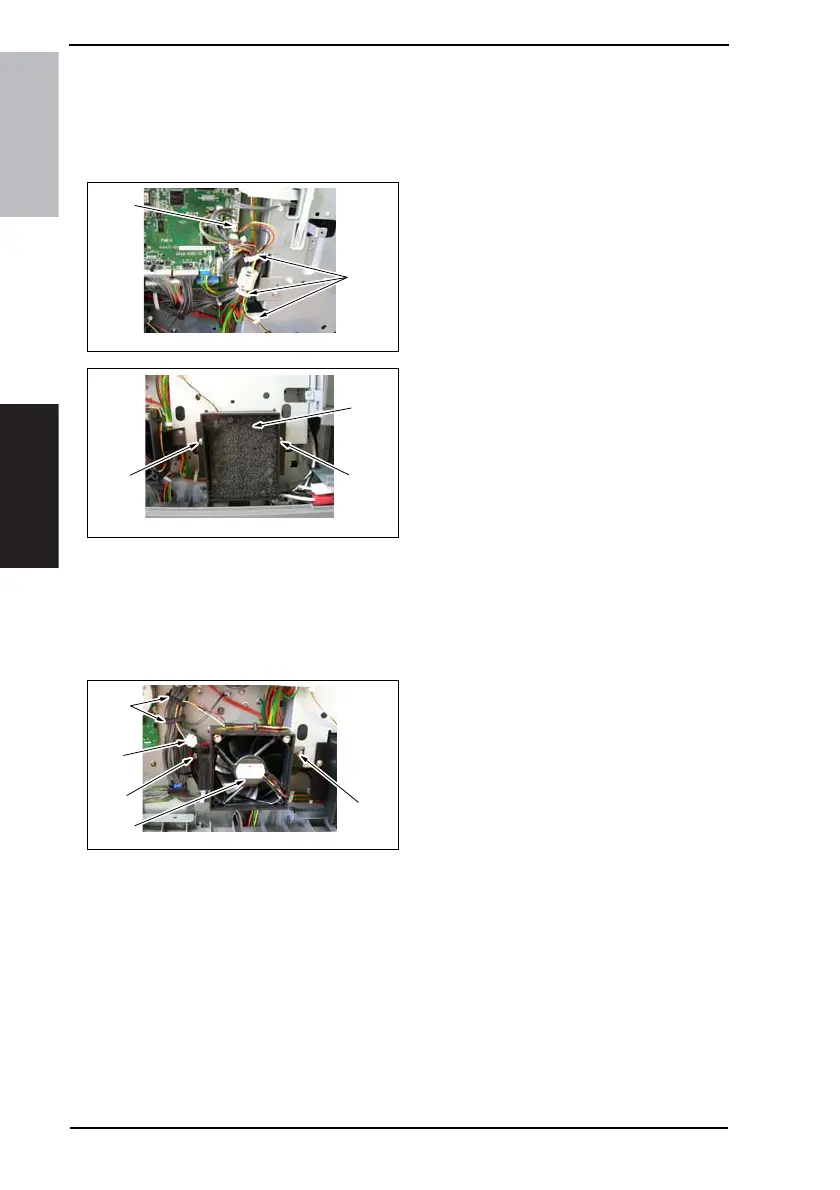

7.3.36 Fusing Unit Cooling Fan Motor
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the Rear Cover.
☞ 51
3. Remove three wiring saddles [1] and
disconnect the connector (PJ33) [2].
4. Remove two screws [3] and the Fus-
ing Unit Cooling Fan Motor [4].
7.3.37 Toner Suction Fan Motor
1. Remove the Upper Rear Cover.
☞ 50
2. Remove the Rear Cover.
☞ 51
3. Remove two screws [1] and two wir-
ing saddles [2], disconnect the con-
nector [3], and remove the Toner
Suction Fan Motor [4].
4040F2C622DA
[1]
[2]
4040F2C623DA
[3]
[4]
[3]
4040F2C621DA
[1]
[4]
[1]
[3]
[2]
