• Be sure to perform the following operation when the Variable Resistor is replaced.
8. Initialize the backup data.
☞ 21
9. Perform document width detection adjustment.
☞ 18
10. Turn OFF the Main Power Switch and turn it ON again and check whether size detec-
tion operates normally.
3.3.4 Complete Stamp Unit 2

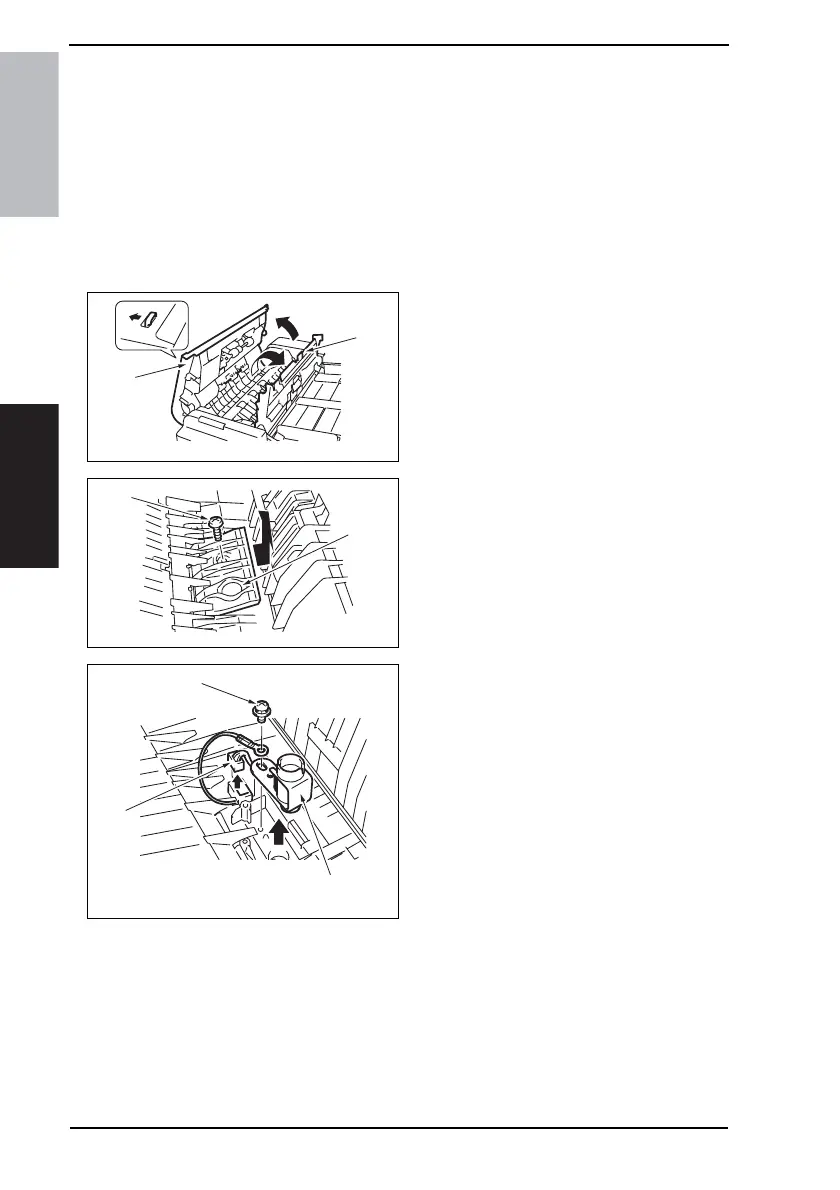

1. Open the Upper Door [1].
2. Open the Processing Guide [2].
3. Remove the screw [3] and the cover
[4].
4. Remove the screw [5] and discon-
nect the connector [6], and remove
the Complete Stamp Unit 2 [7].
4344F2C534DA
[1]
[2]
4344F2C535DA
[4]
[3]
4344F2C536DA
[7]
[6]
[5]
