4. Periodical check Field Service Ver. 1.0 Aug. 2005
22
bizhub 200/250/350
Maintenance

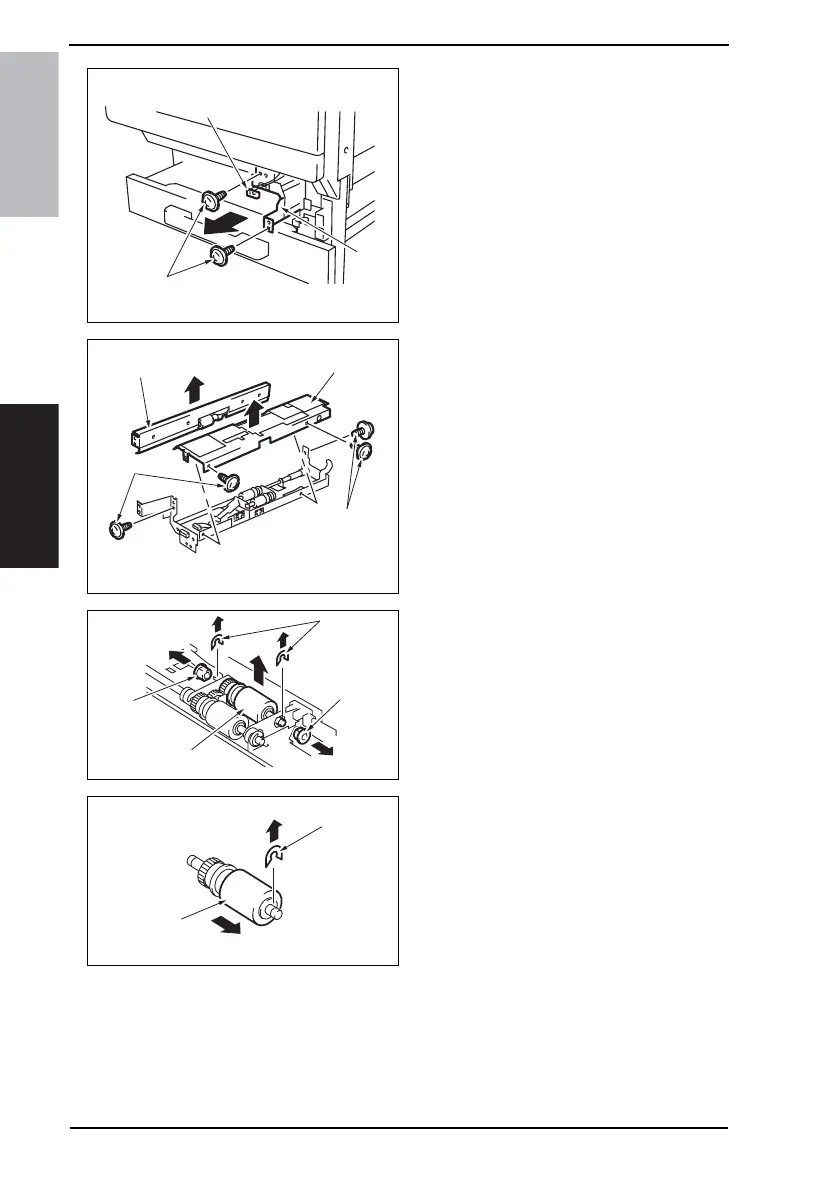

3. Remove the Connector [6].
4. Remove two screws [7] and the Tray
1 Feed Roller Assy [8].
5. Remove four screws [9] and the Tray
1 Feed Roller Assy Cover [10] and
the Tray 1 Separator Roll Assy [11].
6. Remove two C-clips [12] and two
bearings [13]. Then, remove the
Pick-up Roller Assy [14].
7. Remove one C-clip [15] and the Tray
1 Pick-up Roller [16].
8. To reinstall, reverse the order of
removal.
9. Select [Tech. Rep. Mode] →
[Counter] → [Special Parts Counter]
→ [Tray 1] and clear the counter.
4040F2C510DA
[8]
[7]
[6]
4040F2C512DA
[11]
[10]
[9]
[9]
4040F2C517DA
[12]
[13]
[14]
[13]
4040F2C518DA
[15]
[16]
