Field Service Ver. 1.0 Aug. 2005 4. Periodical check
27
bizhub 200/250/350Maintenance

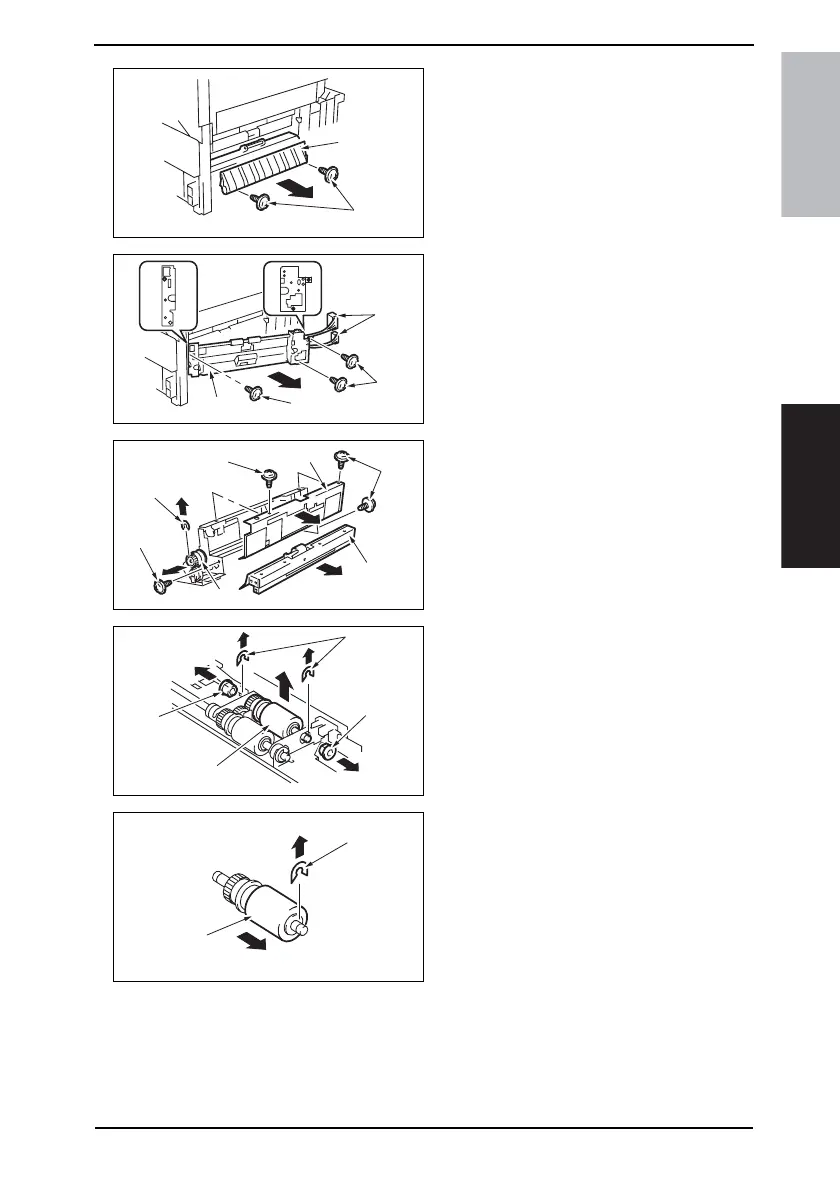

5. Remove two screws [2] and the Mis-
feed Clearing Cover [5].
6. Unplug two connectors [6].
7. Remove three screws [7] and the
Tray 2 Feed Roller Assy [8].
8. Remove four screws [9] and the C-
clip [10]. Then, remove the Tray 2
Feed Roller Cover [11], the Tray 2
Separation Roller Assy [12], and the
Tray 2 Feed Roller Clutch [13].
9. Remove two C-clips [14] and two
bearings [15]. Then, remove the Tray
2 Pick-up Roller Assy [16].
10. Remove the C-clip [17] and the Tray
2 Pick-up Roller [18].
11. To reinstall, reverse the order of
removal.
12. Select [Tech. Rep. Mode] →
[Counter] → [Special Parts Counter]
→ [Tray 2] and clear the counter.
4040F2C527DA
[5]
[4]
4040F2C591DA
[6]
[7]
[7]
[8]
4040F2C528DA
[9]
[9]
[9]
[10]
[13]
[11]
[12]
4040F2C533DA
[14]
[15]
[16]
[15]
4040F2C534DA
[17]
[18]
