Field Service Ver. 1.0 Aug. 2005 7. Other
67
bizhub 200/250/350Maintenance
12. Measure deviation in the CD direc-
tion of the produced copy as com-
pared with reference to the reference
line in the CD direction of the test
chart.
13. If there is any deviation in the CD
direction, loosen screws C and D
and follow these steps to make an
adjustment using adjustment plate E.

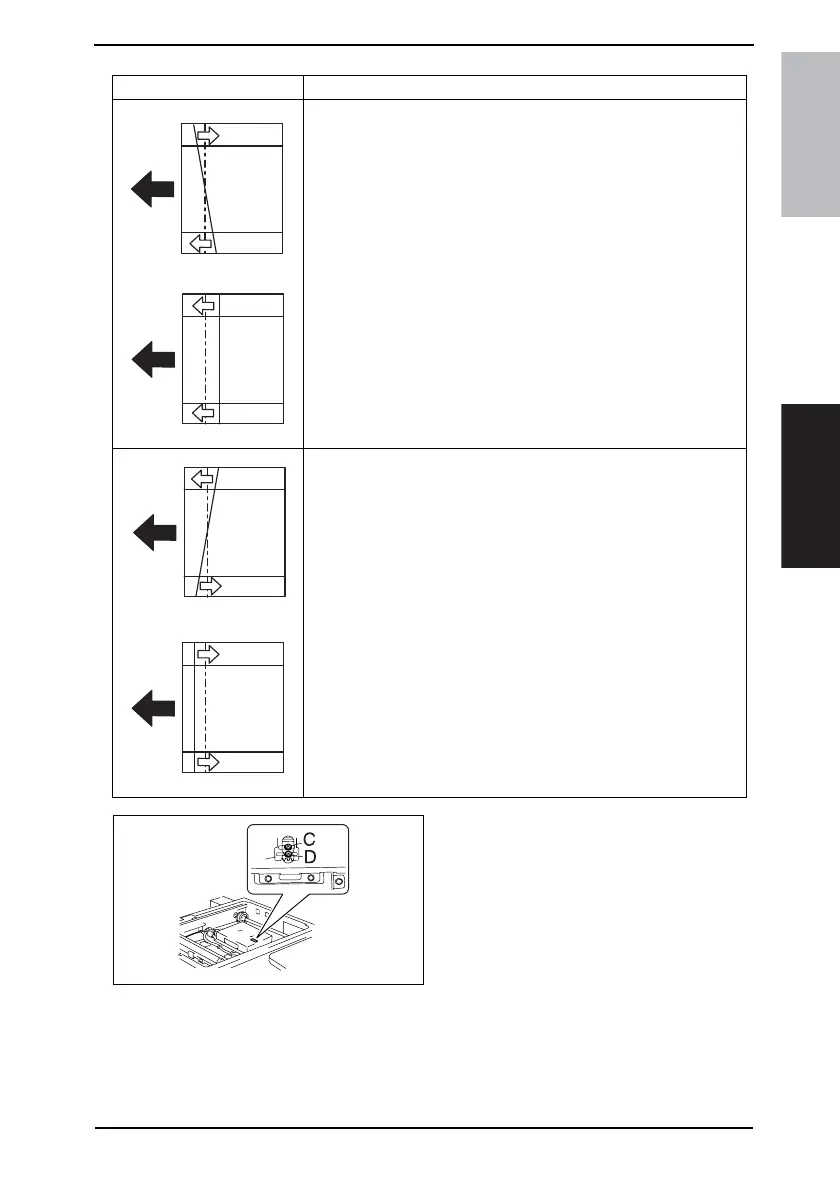

Tilt and FD Deviation Adjustment Procedure Using Screws A and B
• If tilt or deviation in the FD direction is as shown on the left
A: Using an Allen wrench (3 mm), turn screw A counterclockwise.
B: Using an Allen wrench (3 mm), turn screw B clockwise.
* 1/4 turn of the screw results in deviation of 1 mm.
• If tilt or deviation in the FD direction is as shown on the left
A: Using an Allen wrench (3 mm), turn screw A counterclockwise.
B: Using an Allen wrench (3 mm), turn screw B clockwise.
* 1/4 turn of the screw results in deviation of 1 mm.
A
B
4030D594AA
A
B
4030D595AA
A
B
4030D593AA
A
B
4030D596AA
E
4030D590AA
