Field Service Ver. 1.0 Aug. 2005 7. Other
75
bizhub 200/250/350Maintenance

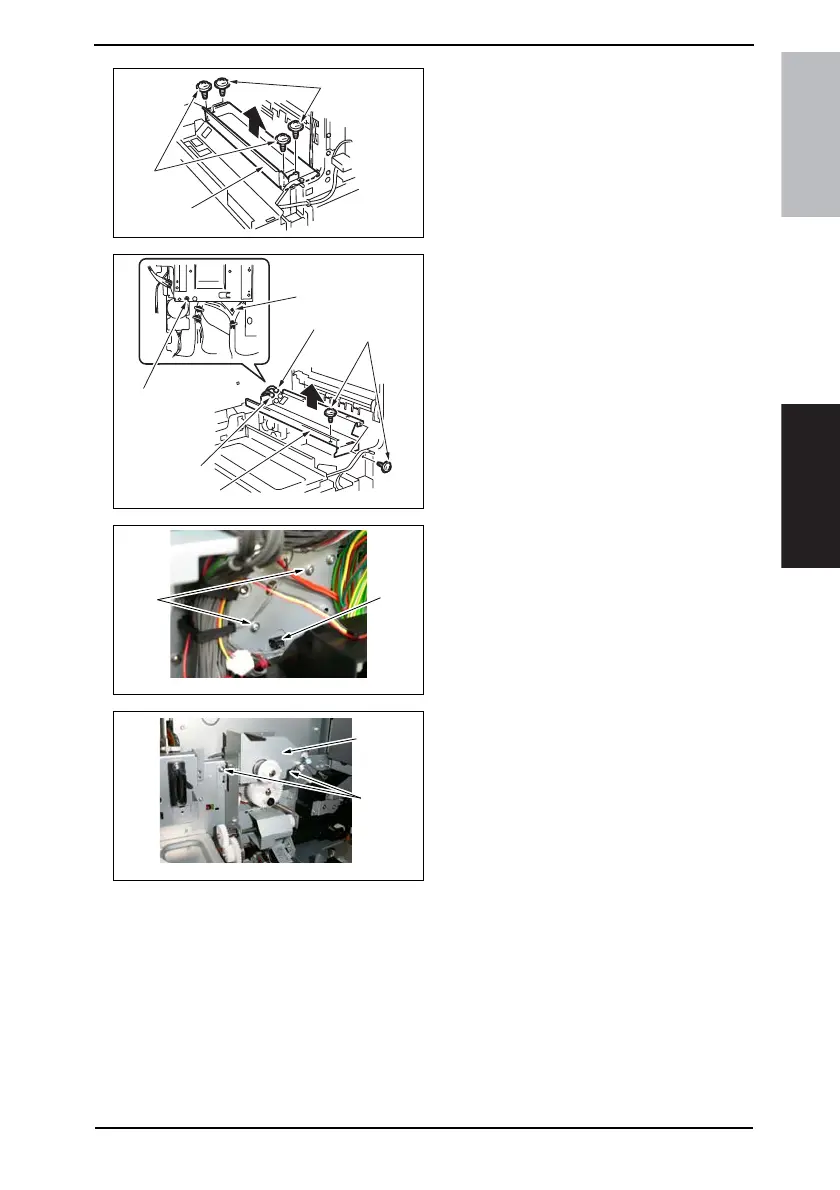

10. Remove four screws [6] and the
imaging unit protective metal bracket
[7].
11. Unplug two connectors [8] and
remove four screws [9] and the Toner
Hopper Assy [10].
12. Remove the two screws [11] and dis-
connect the connector [12] from the
rear side surface.
13. Remove two screws [13] and the
Toner Replenishing Drive Unit [14].
4040F2C606DA
[6]
[6]
[7]
4040F2C607DA
[9]
[8]
[9]
[9]
[8]
[10]
4040F2C673DA
[11]
[12]
4040F2C624DA
[13]
[14]
