B. Reinstallation Procedure

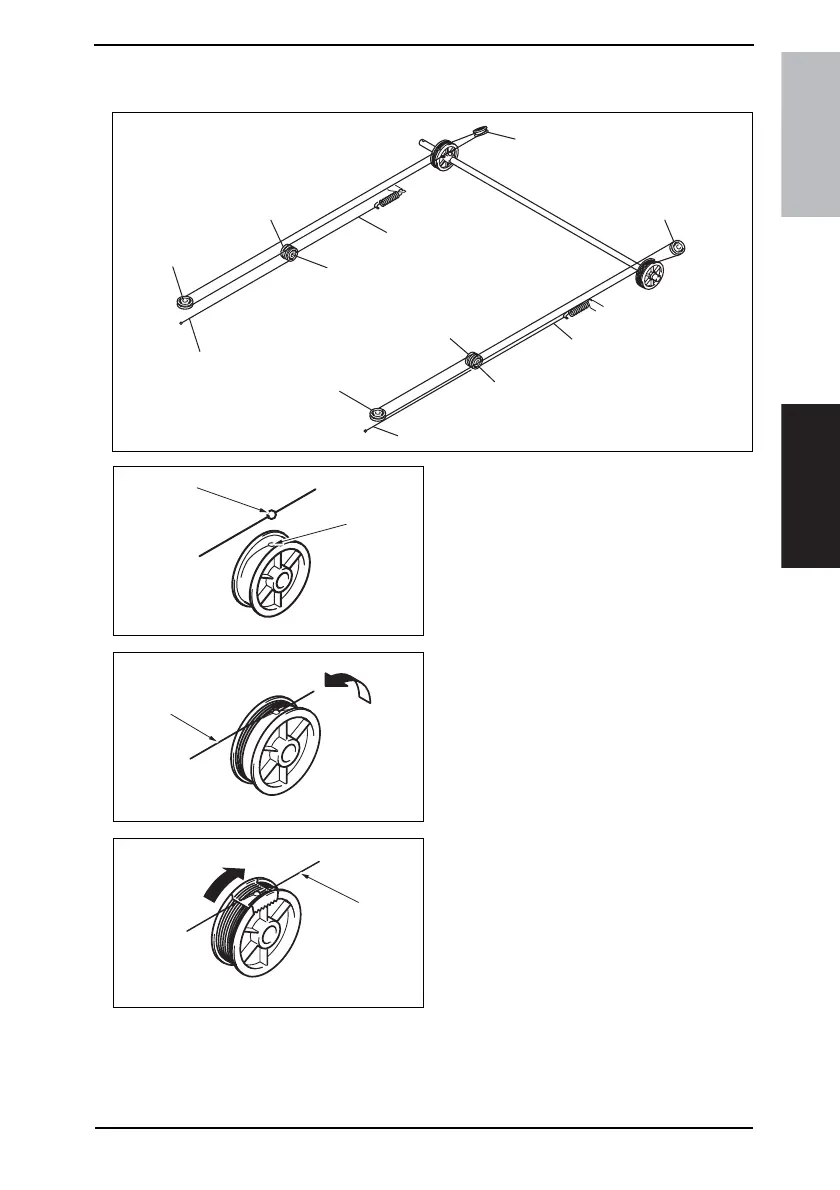

<General View>
<Front>
1. Position the round bead [1] of the
Scanner Drive Cable in the slit [2] in
the pulley.
NOTE
• Make sure that the bead snugly
rests in the slit in the pulley.
2. Wind Scanner Drive Cable 1 [3]
around the pulley four turns counter-
clockwise, from the rear toward the
front side.
NOTE
• Make sure that no part of the cable
rides on the other.
3. Wind Scanner Drive Cable 2 four
turns clockwise from the front to the
rear side. Then, secure the cable
with tape.
NOTE
• Make sure that no part of the cable
rides on the other.
4040F2C714DA
Pulley A
Pulley B
Pulley C
Pulley D
Pulley E
Pulley G
Pulley F
Pulley H
Scanner Drive Cable 3
Scanner Drive Cable 4
Scanner Drive Cable 2
Scanner Drive Cable 1
Front
Rear
4040F2C715DA
[2]
[1]
4040F2C716DA
[3]
4040F2C717DA
[4]
