Field Service Ver. 1.0 Aug. 2005 7. Other
83
bizhub 200/250/350Maintenance

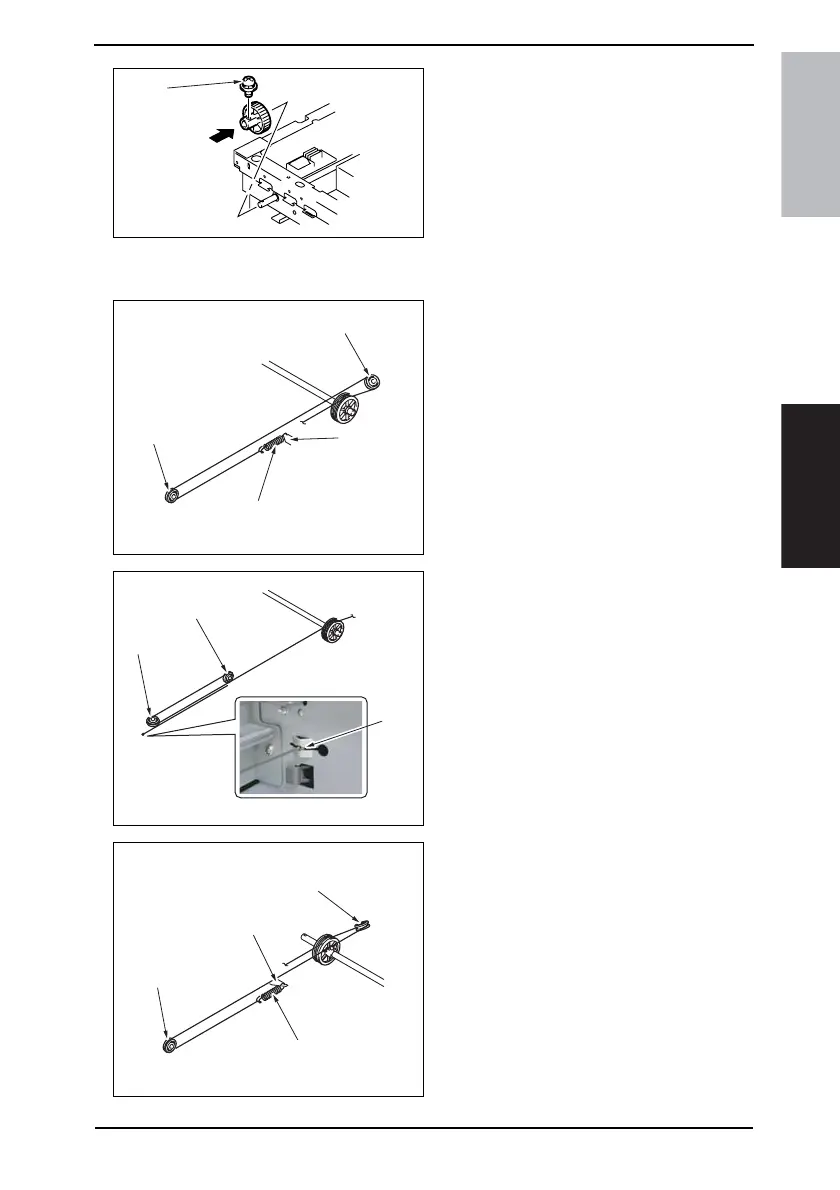

10. Attach the Drive Gear [13] using one
screw.
NOTE
• Allow a clearance of about 0.1 mm
between the Drive Gear and bush-
ing.
11. Mount the Scanner Motor Assy.
☞ 77
<Front>
12. Wind Scanner Drive Cable 2 around
pulley D [14] and pulley B [15], hook
the fixing bead to the fixing spring
[16], and then hook the spring to the
catch [17] in the frame.
13. Wind Scanner Drive Cable 1 around
pulley A [18] and pulley C [19] and
hook the bead to the side surface
[20] of the Scanner Frame.
<Rear>
14. Wind Scanner Drive Cable 4 around
pulley E [21] and pulley G [22] and
hook the fixing bead to the fixing
spring [23], and then hook the spring
to the catch [24] in the frame.
4040F2C757DA
[13]
4040F2C723DA
[17]
[16]
[15]
[14]
4040F2C724DA
[18]
[19]
[20]
4040F2C725DA
[23]
[22]
[24]
[21]
