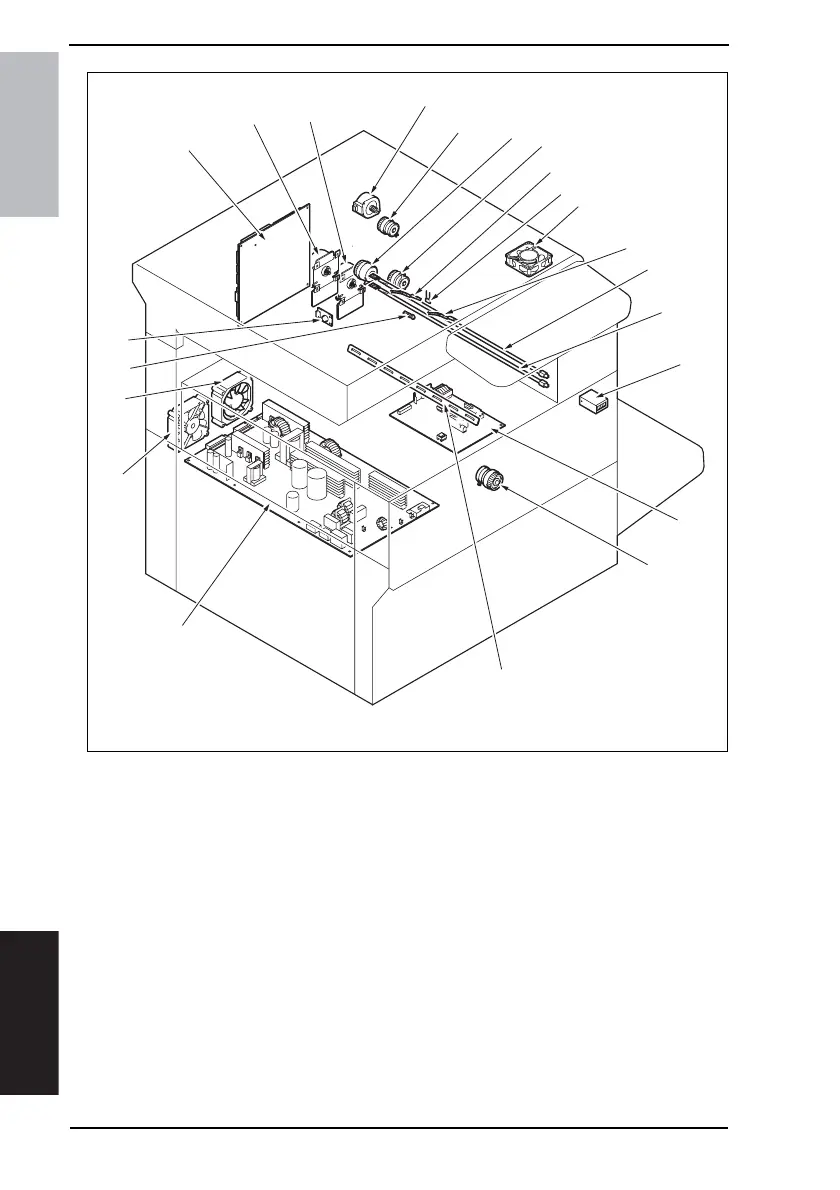

23. Parts layout drawing Field Service Ver. 1.0 Aug. 2005
274
bizhub 200/250/350
Appendix
[1] Switchback Motor (M3) [12] High Voltage Unit (HV1)
[2] Duplex Unit Transport Clutch 1 (CL6) [13] Bypass Paper Feed Clutch (CL5)
[3] Synchronizing Roller Clutch (CL1) [14] Erase Lamp (LA1)
[4] Duplex Unit Transport Clutch 2 (CL7) [15] Power Supply Unit (PU1)
[5] Fusing Roller Sub Thermistor (TH2) [16] Power Supply Cooling Fan Motor (M4)
[6] High Voltage Register (R2) [17] Toner Suction Fan Motor (M11)
[7] Fusing Unit Cooling Fan Motor (M10) [18] Drum Thermistor (TH4)
[8] Fusing Roller Thermistor (TH1) [19] Temperature/humidity Sensor (TH3)
[9] Fusing Roller Sub Heater Lamp (H2) [20] Mechanical Control Board (PWB-A)
[10] Fusing Roller Heater Lamp (H1) [21] Main Motor (M1)
[11] Total Counter (CNT1) [22] IU Motor (M2)
4040F5C501DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[9]
[8]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
