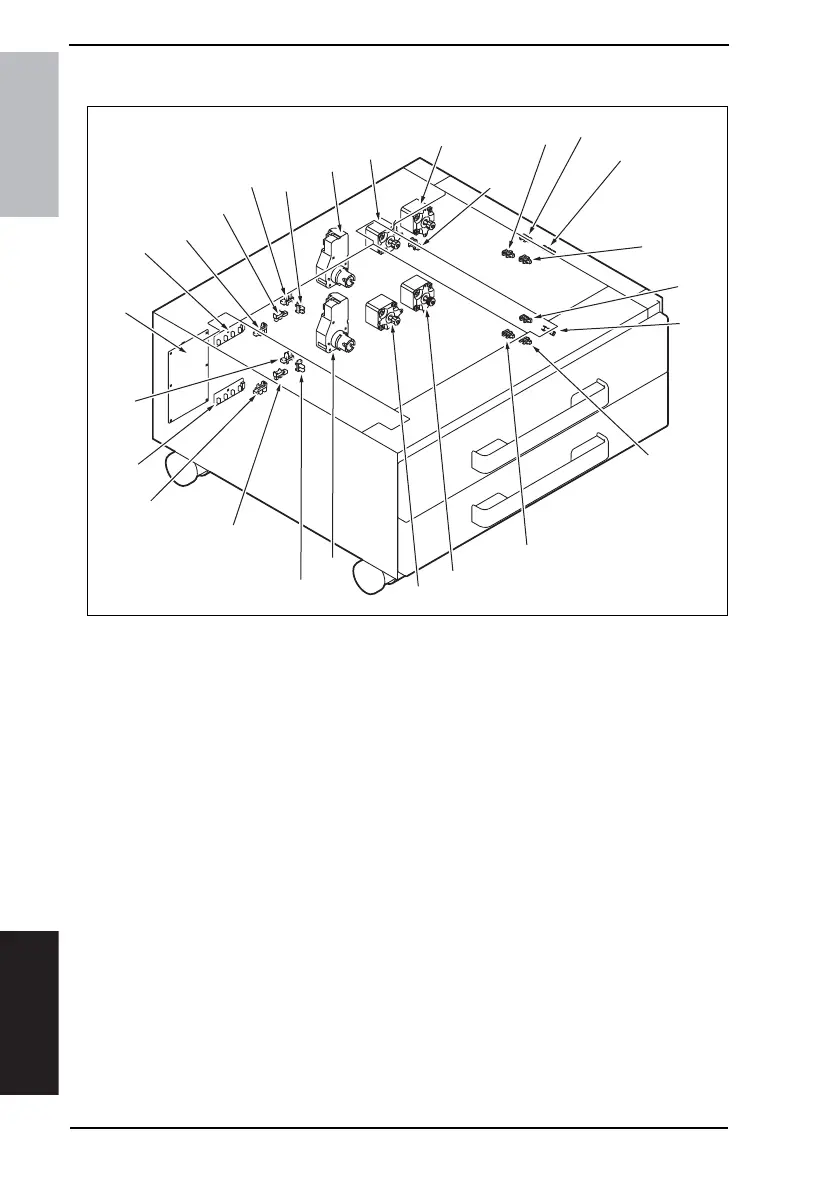

23.5 PC-102/PC-202 (Option)
[1]
Tray3 Vertical Conveyance Motor
(M120-PF)
[14]
Tray4 Paper Near-Empty Sensor
(PC122-PF)
[2] Door Sensor (PC111-PF) [15] Tray4 CD Paper Size Sensor 2 (PC128-PF)
[3] Tray3 Lift Sensor (PC114-PF) [16] Tray4 CD Paper Size Sensor 1 (PC127-PF)
[4]
Tray3 Vertical Conveyance Sensor
(PC117-PF)
[17]
Tray4 FD Paper Size Detection Board
(PWB-I4 PF)
[5] Tray3 Paper Take-Up Sensor (PC116-PF) [18] Tray4 Set Sensor (PC121-PF)
[6] Tray3 Paper Empty Sensor (PC115-PF) [19] Main Control Board (PWB-C2 PF)
[7]
Tray4 Vertical Conveyance Sensor
(PC126-PF)
[20]
Tray3 FD Paper Size Detection Board
(PWB-I3 PF)
[8] Tray4 Paper Take-Up Sensor (PC125-PF) [21] Tray3 CD Paper Size Sensor 1 (PC118-PF)
[9] Tray4 Paper Empty Sensor (PC124-PF) [22] Tray3 CD Paper Size Sensor 2 (PC119-PF)
[10] Tray4 Lift Sensor (PC123-PF) [23] Tray3 Set Sensor (PC112-PF)
[11]
Tray4 Vertical Conveyance Motor
(M121-PF)
[24]
Tray3 Paper Near-Empty Sensor
(PC113-PF)
[12] Tray4 Paper Feed Motor (M123-PF) [25] Tray3 Lift Motor (M124-PF)
[13] Tray4 Lift Motor (M125-PF) [26] Tray3 Paper Feed Motor (M122-PF)
