4. Disassembly/Reassembly Field Service Ver. 1.0 Aug. 2005
8
FK-503
Maintenance

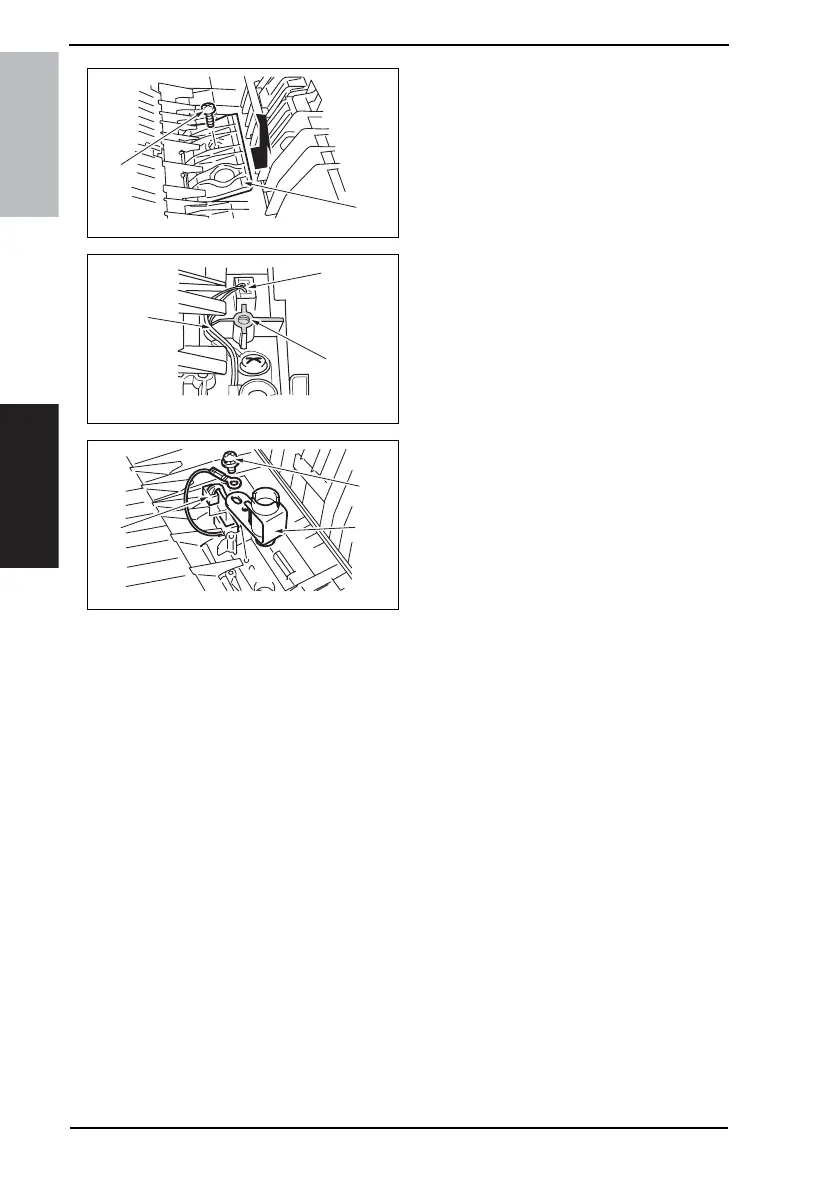

5. Remove the screw [3] and the Guide
Plate [4].
6. Disconnect the connector [5] and
remove the hookup harness [6].
NOTE
• At reinstallation, use care not to
allow the hookup harness to ride
over the rib [7].
7. Remove the screw [8], disconnect
the connector [9], and remove TX
Marker Stamp 2 [10].
NOTE
• Make sure that this step is per-
formed only after the stamp (ink
portion) has been removed.
4040F2C687DA
[4]
[3]
4040F2C688DA
[7]
[5]
[6]
4040F2C689DA
[8]
[9]
[10]
To Next Page
