FS-508/PU-501/OT-601Maintenance
4. Attach the C-ring and press the Exit
Paddle Drive Clutch Assy [6] to the
bushing [5].
5. Adjust the spacing between the
bushing [5] and the Exit Paddle Drive
Clutch Assy [6] to 0.2 mm and
tighten two hexagonal socket head
screws.

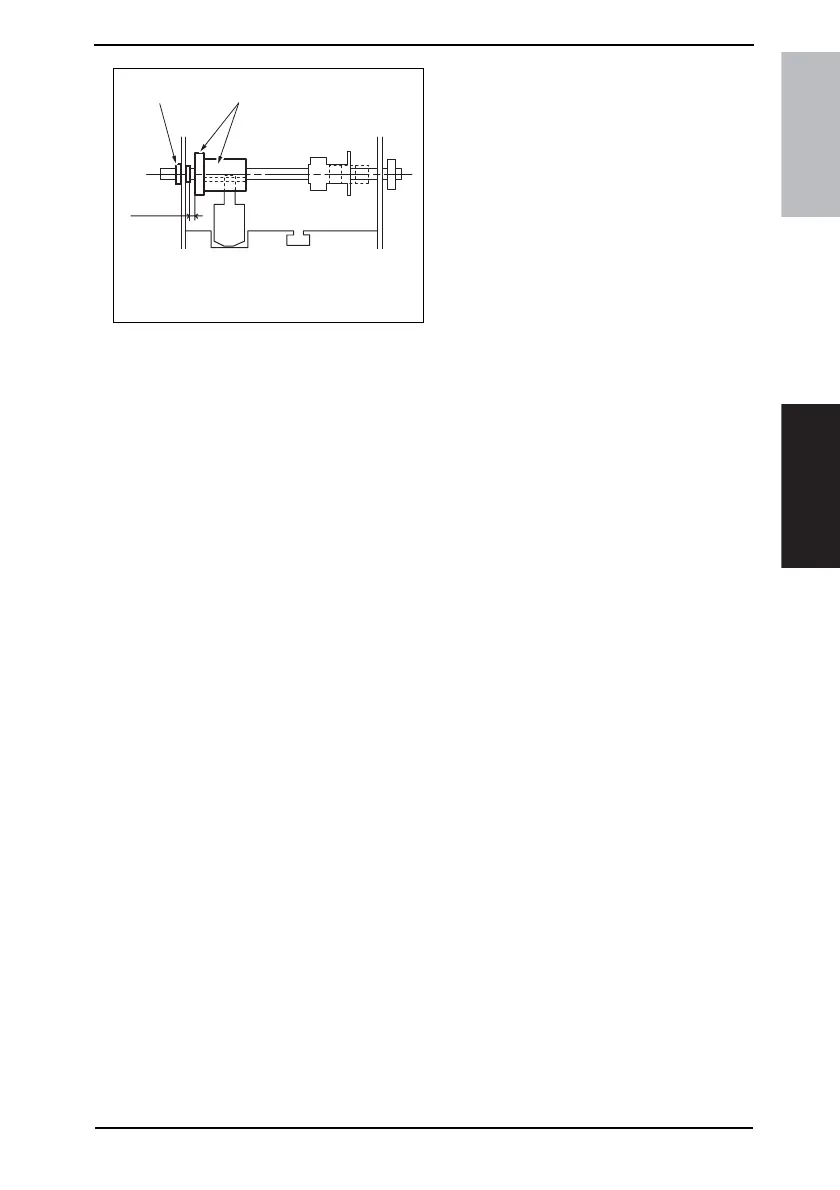

4349F2C532DA
[6][5]
0.2 mm
