4. Other Field Service Ver. 1.0 Aug. 2005
8
SD-502
Maintenance

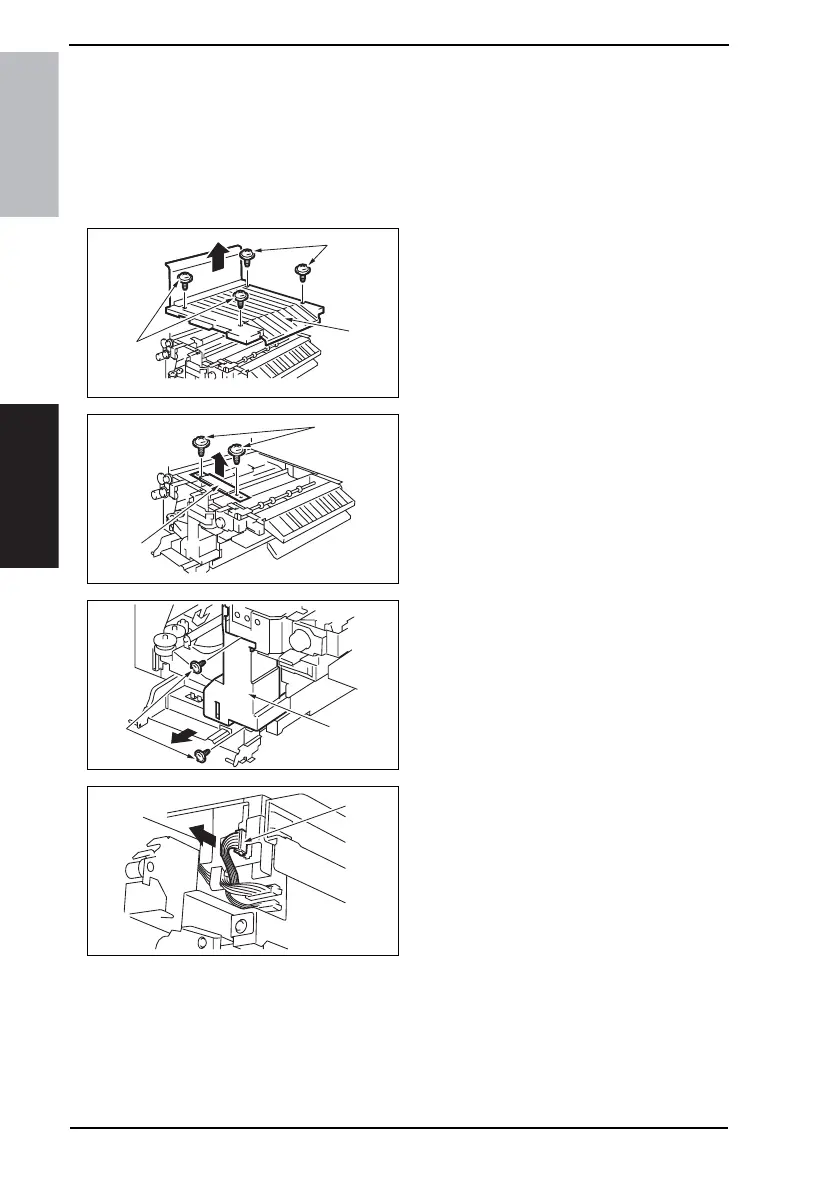

4.3.5 Crease Unit
1. Remove the Saddle Unit.
☞ 7
2. Remove the Elevator Tray.
☞ For details, see FS-508 Service Manual.
3. Remove the Horizontal Transport Unit.
☞ For details, see FS-508 Service Manual.
4. Remove four screws [1], and remove
the Horizontal Transport Upper
Cover [2].
5. Remove two screws [3], and remove
the Reinforcement Bracket [4].
6. Remove two screws [5], and remove
the Horizontal Transport Lower Front
Cover [6].
7. Unplug the connector [7].
4349F2C516DA
[1]
[1]
[2]
4511F2C509DA
[3]
[4]
4511F2C510DA
[5]
[6]
4511F2C511DA
[7]
