Field Service Ver. 1.0 Aug. 2005 4. Other
17
SD-502Maintenance

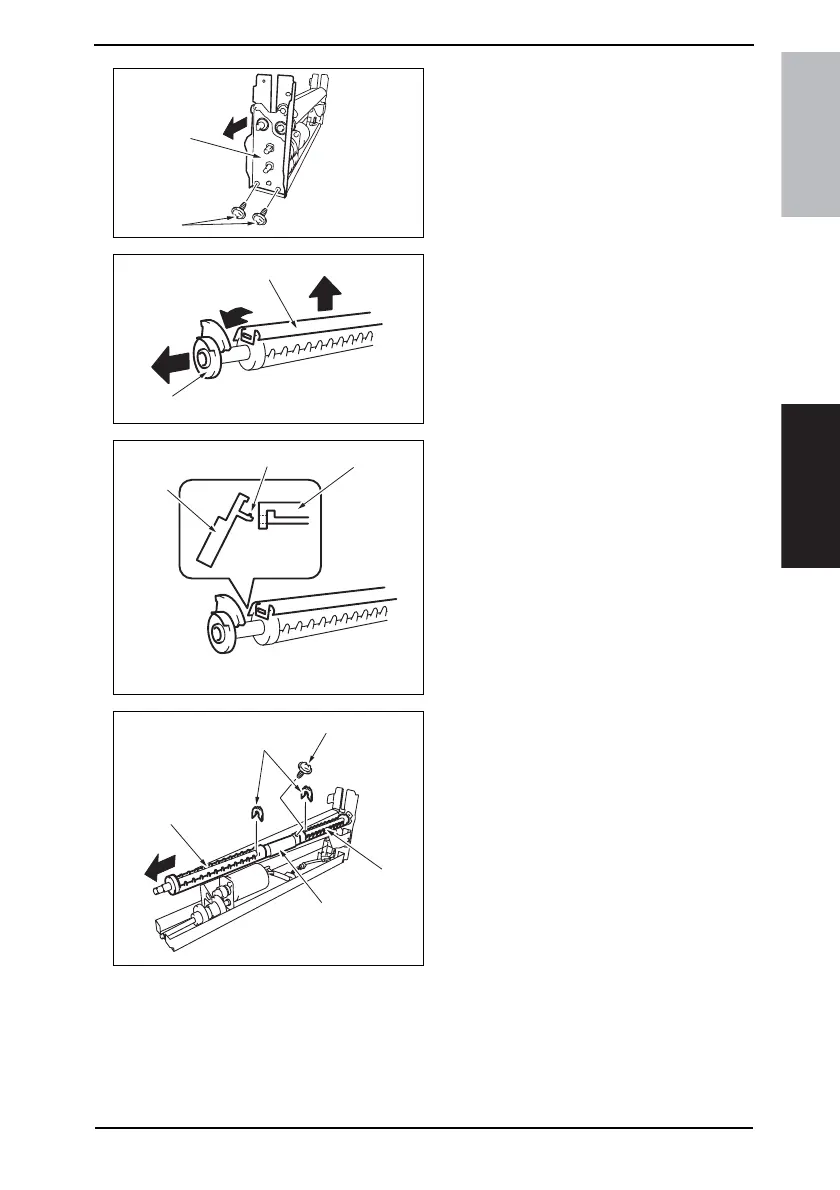

8. Remove two screws [13], and
remove the Rear Holder [14].
9. Remove the gear [15] of Crease
Roller 1, and remove the Lower
Guide Plate [16].
• When installing the gear [17] to the
Lower Guide Plate [18], insert the
gear [17] at an angle and use care
not to break the tabs [19].
• Install the Lower Guide Plate as
shown on the left.
• Install the gear of Crease Roller 1
so that it is above one gear tooth.
10. Remove the screw [20].
11. Remove two C-rings [21], and
remove the Crease Roller A [22],
B [23], and C [24].
4511F2C541DA
[13]
[14]
4511F2C542DA
[15]
[16]
4511F2C543DA
[18]
[19]
[17]
4511F2C544DA
[20]
[21]
[23]
[24]
[22]
