dSPACE DS1103 User Manual

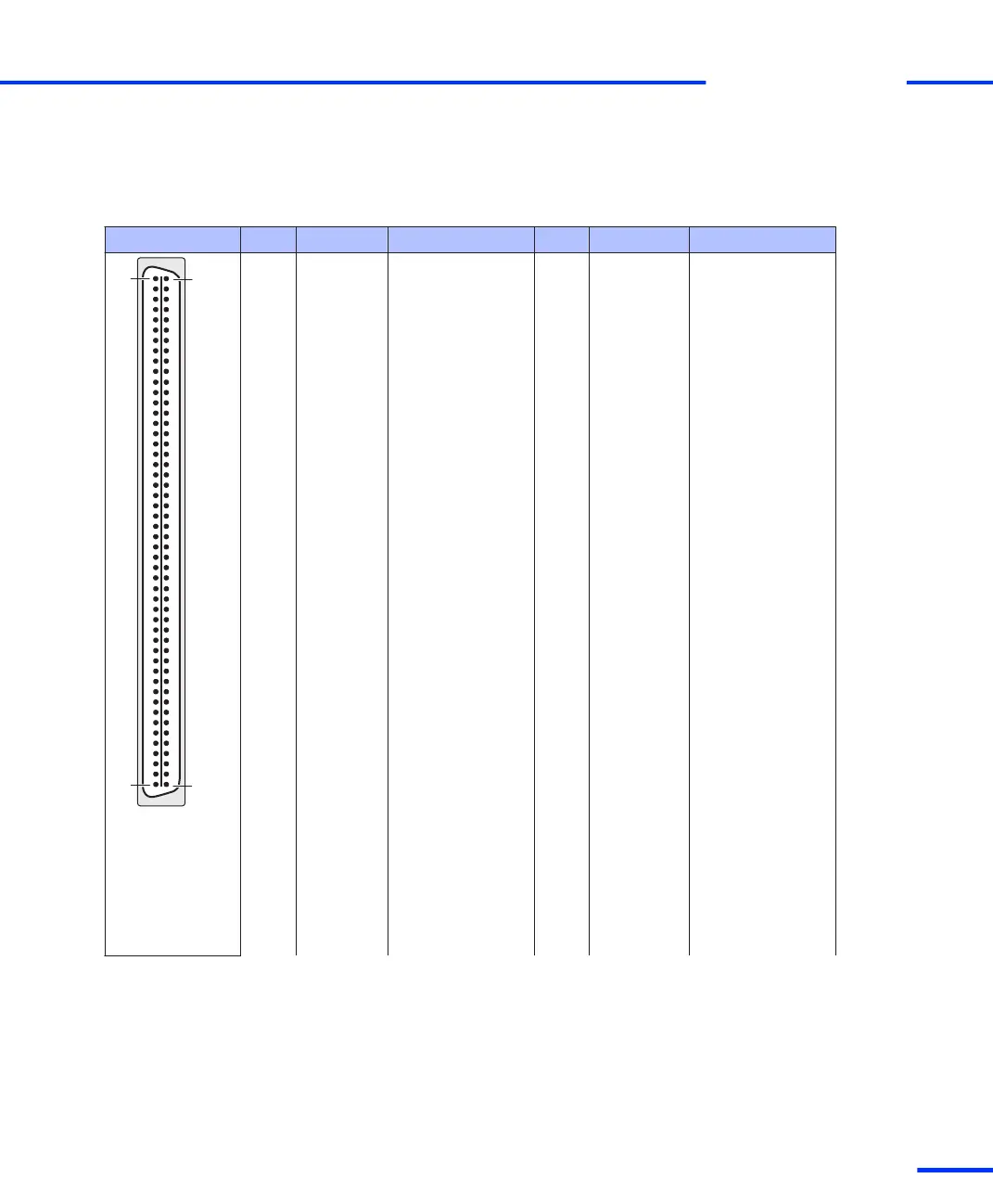

The following table shows the pin assignment of the analog
connector (P1). It also provides the mapping to the Sub-D connectors
of the adapter cable.
Connector (P1) Pin Sub-D Pin Signal Pin Sub-D Pin Signal
21
99 100
P1 1 P1B 1 GND P1 2 P1A 1 GND
P1 3 P1B 34 ADCH1 P1 4 P1A 34 ADCH2
P1 5 P1B 18 GND P1 6 P1A 18 GND
P1 7 P1B 2 ADCH3 P1 8 P1A 2 ADCH4
P1 9 P1B 35 GND P1 10 P1A 35 GND
P1 11 P1B 19 ADCH5 P1 12 P1A 19 ADCH6
P1 13 P1B 3 GND P1 14 P1A 3 GND
P1 15 P1B 36 ADCH7 P1 16 P1A 36 ADCH8
P1 17 P1B 20 GND P1 18 P1A 20 GND
P1 19 P1B 4 ADCH9 P1 20 P1A 4 ADCH10
P1 21 P1B 37 GND P1 22 P1A 37 GND
P1 23 P1B 21 ADCH11 P1 24 P1A 21 ADCH12
P1 25 P1B 5 GND P1 26 P1A 5 GND
P1 27 P1B 38 ADCH13 P1 28 P1A 38 ADCH14
P1 29 P1B 22 GND P1 30 P1A 22 GND
P1 31 P1B 6 ADCH15 P1 32 P1A 6 ADCH16
P1 33 P1B 39 GND P1 34 P1A 39 GND
P1 35 P1B 23 ADCH17 P1 36 P1A 23 ADCH18
P1 37 P1B 7 GND P1 38 P1A 7 GND
P1 39 P1B 40 ADCH19 P1 40 P1A 40 ADCH20
P1 41 P1B 24 GND P1 42 P1A 24 GND
P1 43 P1B 8 GND P1 44 P1A 8 GND
P1 45 P1B 41 GND P1 46 P1A 41 GND
P1 47 P1B 25 DACH1 P1 48 P1A 25 DACH2
P1 49 P1B 9 GND P1 50 P1A 9 GND
P1 51 P1B 42 DACH3 P1 52 P1A 42 DACH4
P1 53 P1B 26 GND P1 54 P1A 26 GND
P1 55 P1B 10 DACH5 P1 56 P1A 10 DACH6
P1 57 P1B 43 GND P1 58 P1A 43 GND
P1 59 P1B 27 DACH7 P1 60 P1A 27 DACH8
P1 61 P1B 11 GND P1 62 P1A 11 GND
P1 63 P1B 44 GND P1 64 P1A 44 GND
s
DS1103 Components
t
DS1103 Hardware Installation and Configuration November 2014
109
