dSPACE DS1103 User Manual

Signal names in parentheses apply when the UART is set to the RS422
mode.

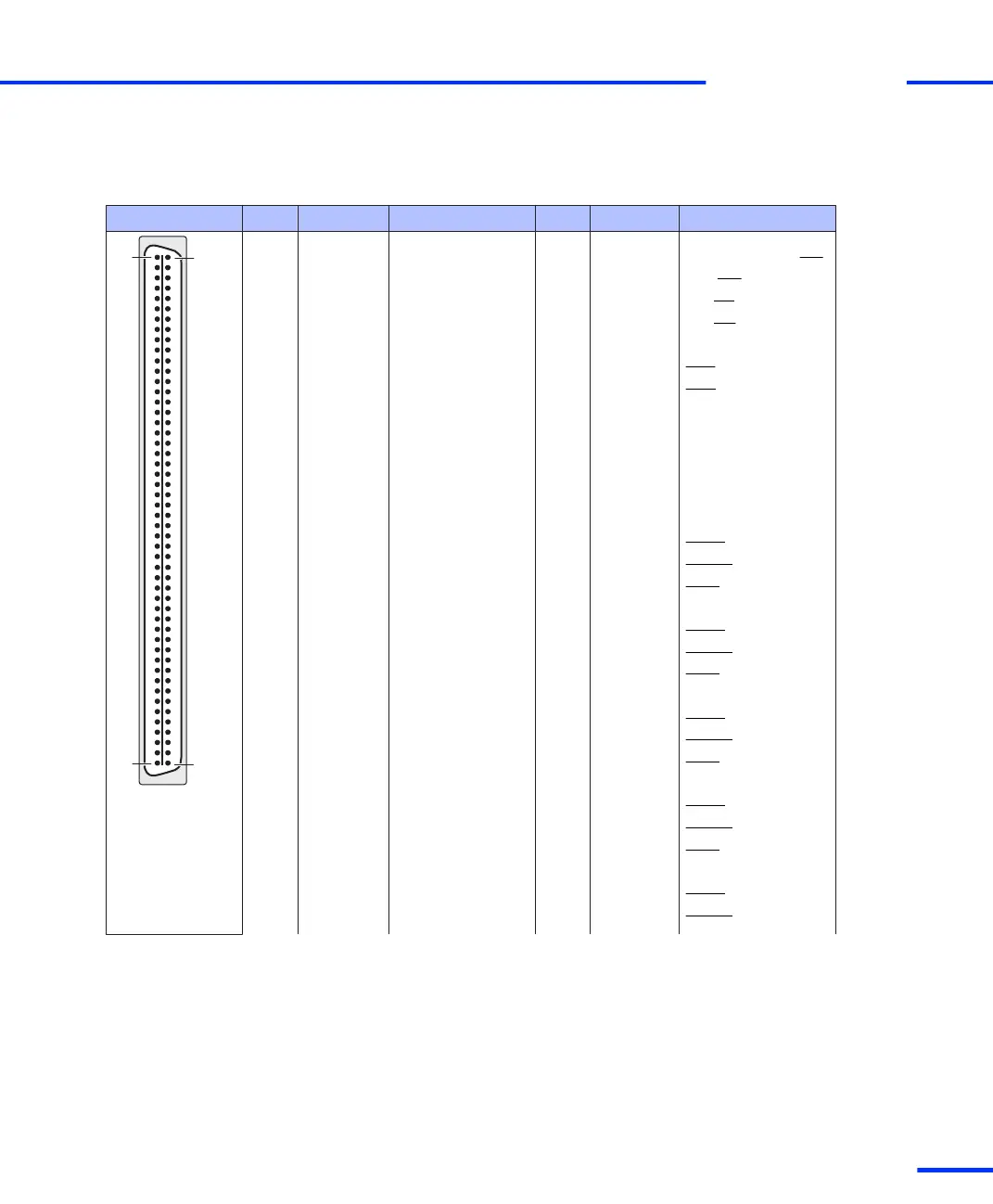

Connector (P3) Pin Sub-D Pin Signal Pin Sub-D Pin Signal
21
99 100
P3 1 P3B 1 GND P3 2 P3A 1 GND
P3 3 P3B 34 TXD (TXD) P3 4 P3A 34 Not used for RS232 (TXD)
P3 5 P3B 18 RXD (RXD) P3 6 P3A 18 DCD (RXD)
P3 7 P3B 2 RTS (RTS) P3 8 P3A 2 DTR (RTS)
P3 9 P3B 35 CTS (CTS) P3 10 P3A 35 DSR (CTS)
P3 11 P3B 19 RI (not used for RS422) P3 12 P3A 19 GND
P3 13 P3B 3 STXD P3 14 P3A 3 STXD
P3 15 P3B 36 SRXD P3 16 P3A 36 SRXD
P3 17 P3B 20 – P3 18 P3A 20 –
P3 19 P3B 4 – P3 20 P3A 4 –
P3 21 P3B 37 – P3 22 P3A 37 –
P3 23 P3B 21 – P3 24 P3A 21 –
P3 25 P3B 5 – P3 26 P3A 5 –
P3 27 P3B 38 GND P3 28 P3A 38 GND
P3 29 P3B 22 PHI0(7) P3 30 P3A 22 PHI0(7)
P3 31 P3B 6 PHI90(7) P3 32 P3A 6 PHI90(7)
P3 33 P3B 39 IDX(7) P3 34 P3A 39 IDX(7)
P3 35 P3B 23 GND P3 36 P3A 23 GND
P3 37 P3B 7 PHI0(6) P3 38 P3A 7 PHI0(6)
P3 39 P3B 40 PHI90(6) P3 40 P3A 40 PHI90(6)
P3 41 P3B 24 IDX(6) P3 42 P3A 24 IDX(6)
P3 43 P3B 8 GND P3 44 P3A 8 GND
P3 45 P3B 41 PHI0(1) P3 46 P3A 41 PHI0(1)
P3 47 P3B 25 PHI90(1) P3 48 P3A 25 PHI90(1)
P3 49 P3B 9 IDX(1) P3 50 P3A 9 IDX(1)
P3 51 P3B 42 GND P3 52 P3A 42 GND
P3 53 P3B 26 PHI0(2) P3 54 P3A 26 PHI0(2)
P3 55 P3B 10 PHI90(2) P3 56 P3A 10 PHI90(2)
P3 57 P3B 43 IDX(2) P3 58 P3A 43 IDX(2)
P3 59 P3B 27 GND P3 60 P3A 27 GND
P3 61 P3B 11 PHI0(3) P3 62 P3A 11 PHI0(3)
P3 63 P3B 44 PHI90(3) P3 64 P3A 44 PHI90(3)
s
DS1103 Components
t
DS1103 Hardware Installation and Configuration November 2014
119
t
