Service Instructions 755 A/756 A - 00.0 - 02/2019 233

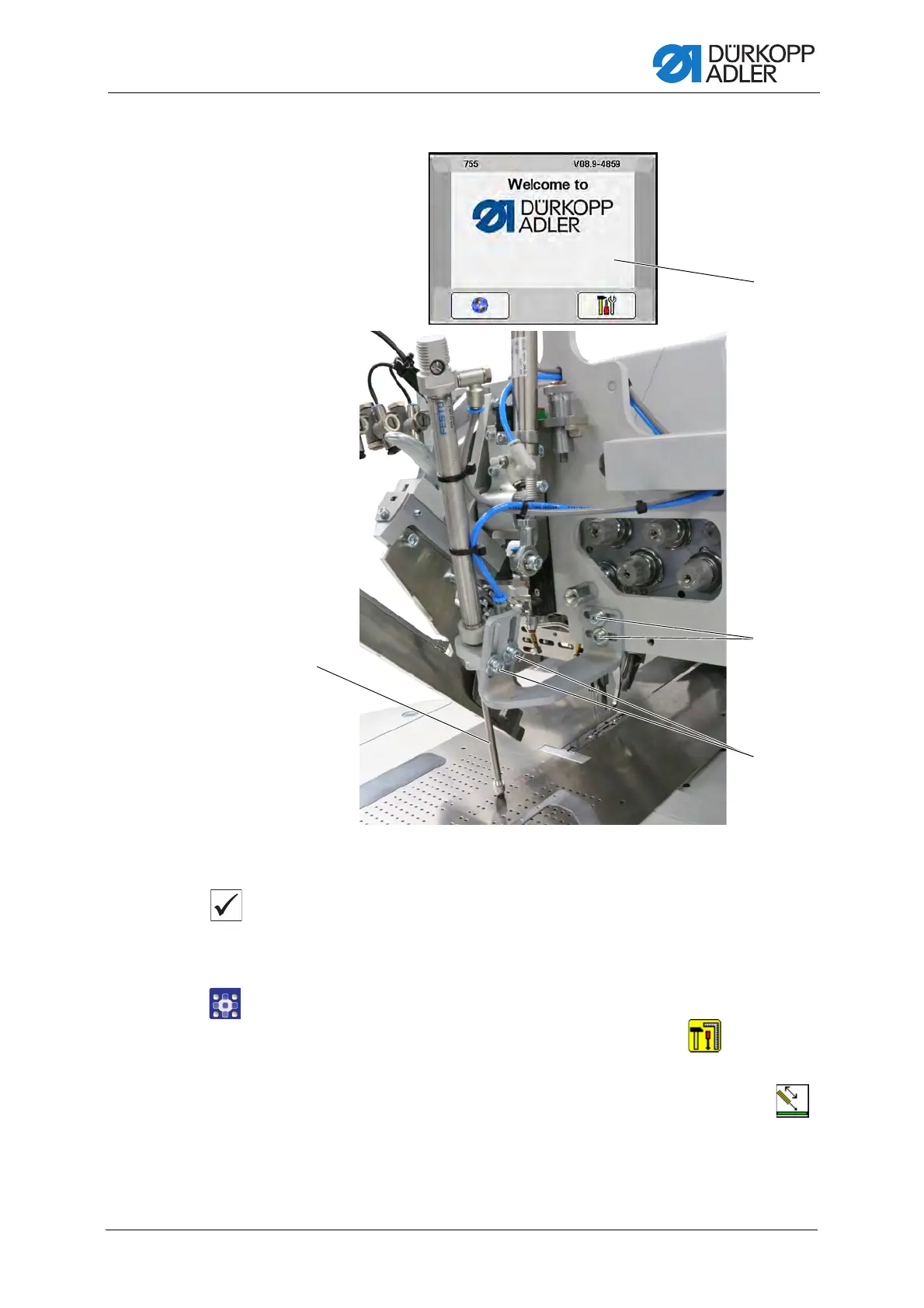

Fig. 229: Setting the downholder (1)

Proper setting

The downholder is aligned such that it moves down close to the folder as

well as close to the front in the area of the sewing start.

To set the downholder:

1. Switch on the machine and press the Service button on the boot

screen (4).

2. Open the menu Service > Machine config. and press the

button.

(1) - Downholder

(2) - Screws

(3) - Screws

(4) - Boot screen
