3. Open the menu Service > Multi test > Multi test I/O
and select the output Y12.
 The downholder (1) extends.
4. Pull the transport clamps to the front by hand.
5. Loosen the screws (3).
6. Move the holder sideways.
Important
To avoid a collision, the extended downholder must be positioned
between the transport clamps.
7. Tighten the screws (3).
8. Loosen the screws (2).
9. Align the height of the downholder.
 The downholder (1) must rest on the fabric sliding plate, exerting
a slight pressure.
10. Tighten the screws (2).
Information

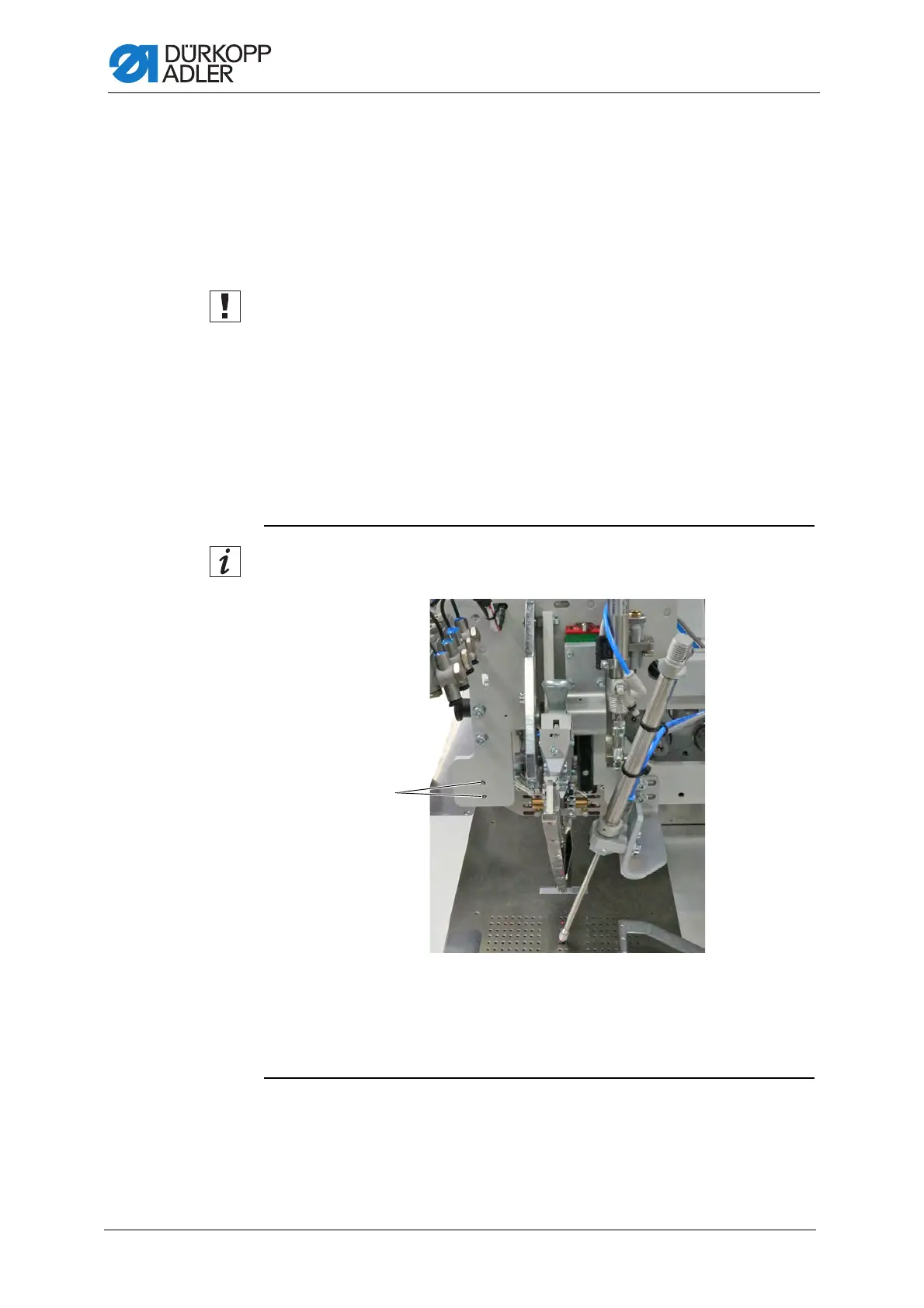

Fig. 230: Setting the downholder (2)
It is also possible to install a downholder on the left-hand side. To do so,
assemble the holder at the holes (5) on the left-hand side of the folding
station plate.
(5) - Holes
