Stacker
Service Instructions 755 A/756 A - 00.0 - 02/2019 259
Replacing pneumatic cylinder 2

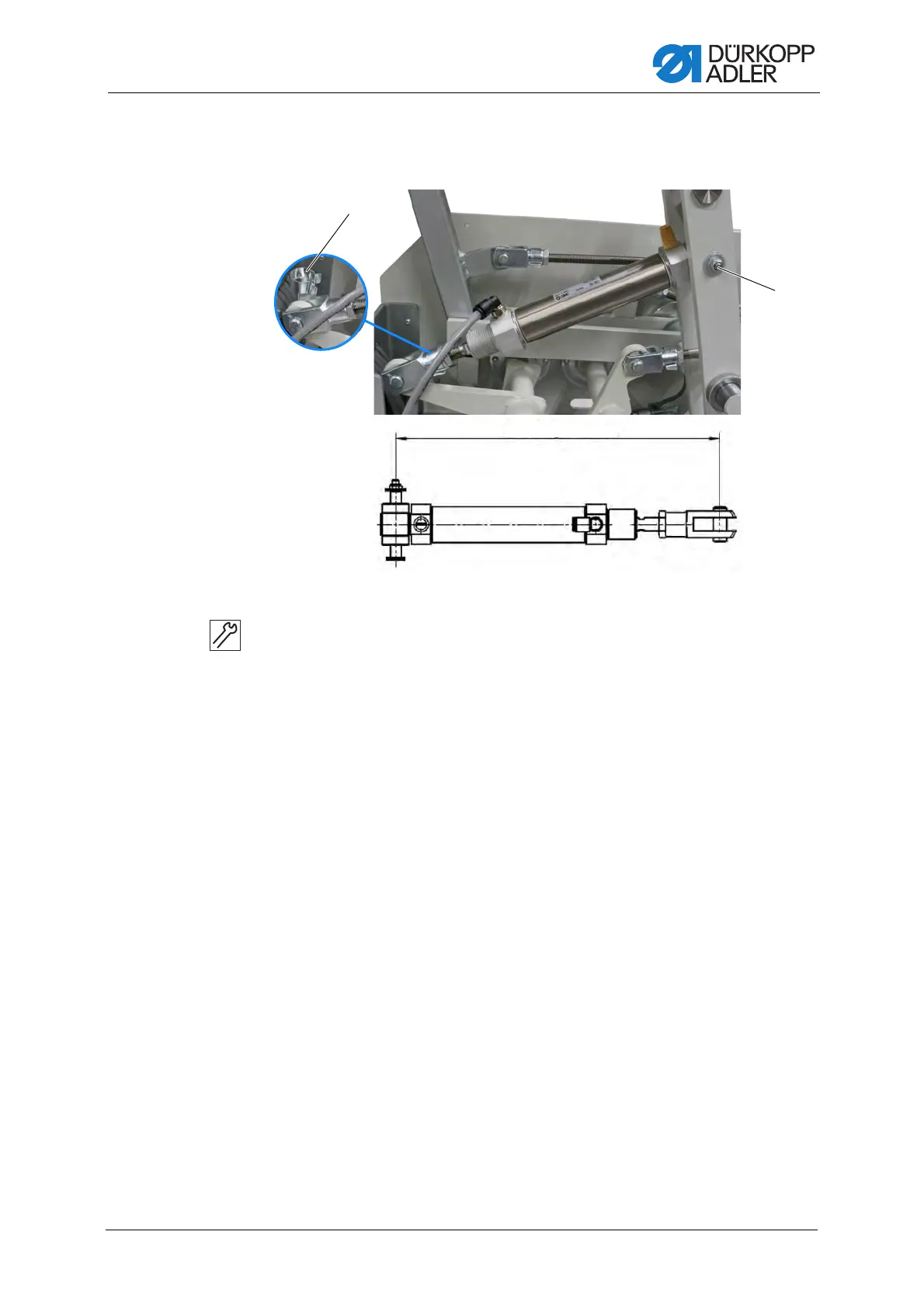

Fig. 255: Replacing pneumatic cylinder 2
To replace pneumatic cylinder 2:
1. Loosen the spring clip (1).
2. Loosen the screw (2) and disassemble the axle.
3. Disassemble the old pneumatic cylinder.
4. Set the new pneumatic cylinder to a dimension of 240 mm.
5. Assemble the new pneumatic cylinder.
Make sure to insert the sockets again.
6. Connect the pneumatic lines.
(1) - Spring clip (2) - Screw
