260 Service Instructions 755 A/756 A - 00.0 - 02/2019

Replacing pneumatic cylinder 3

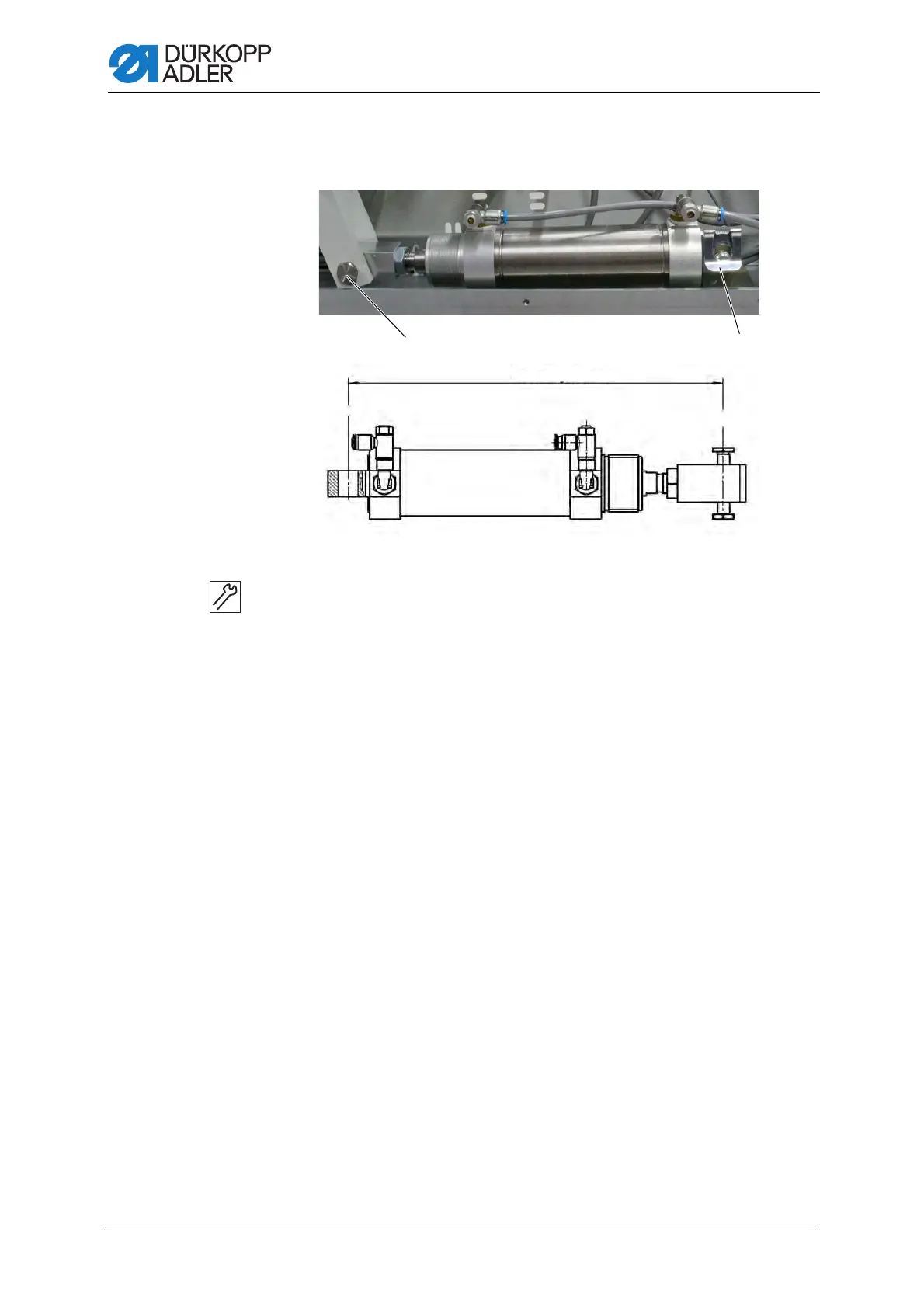

Fig. 256: Replacing pneumatic cylinder 3

To replace pneumatic cylinder 3:

1. Loosen the spring clip (2).

2. Loosen the screw (1) and disassemble the axle.

3. Disassemble the old pneumatic cylinder.

4. Set the new pneumatic cylinder to a dimension of 301 mm.

5. Assemble the new pneumatic cylinder.

6. Connect the pneumatic lines.

(1) - Screw (2) - Spring clip

①②

301(retracted)
