Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 277

Entering values using the numeric keypad

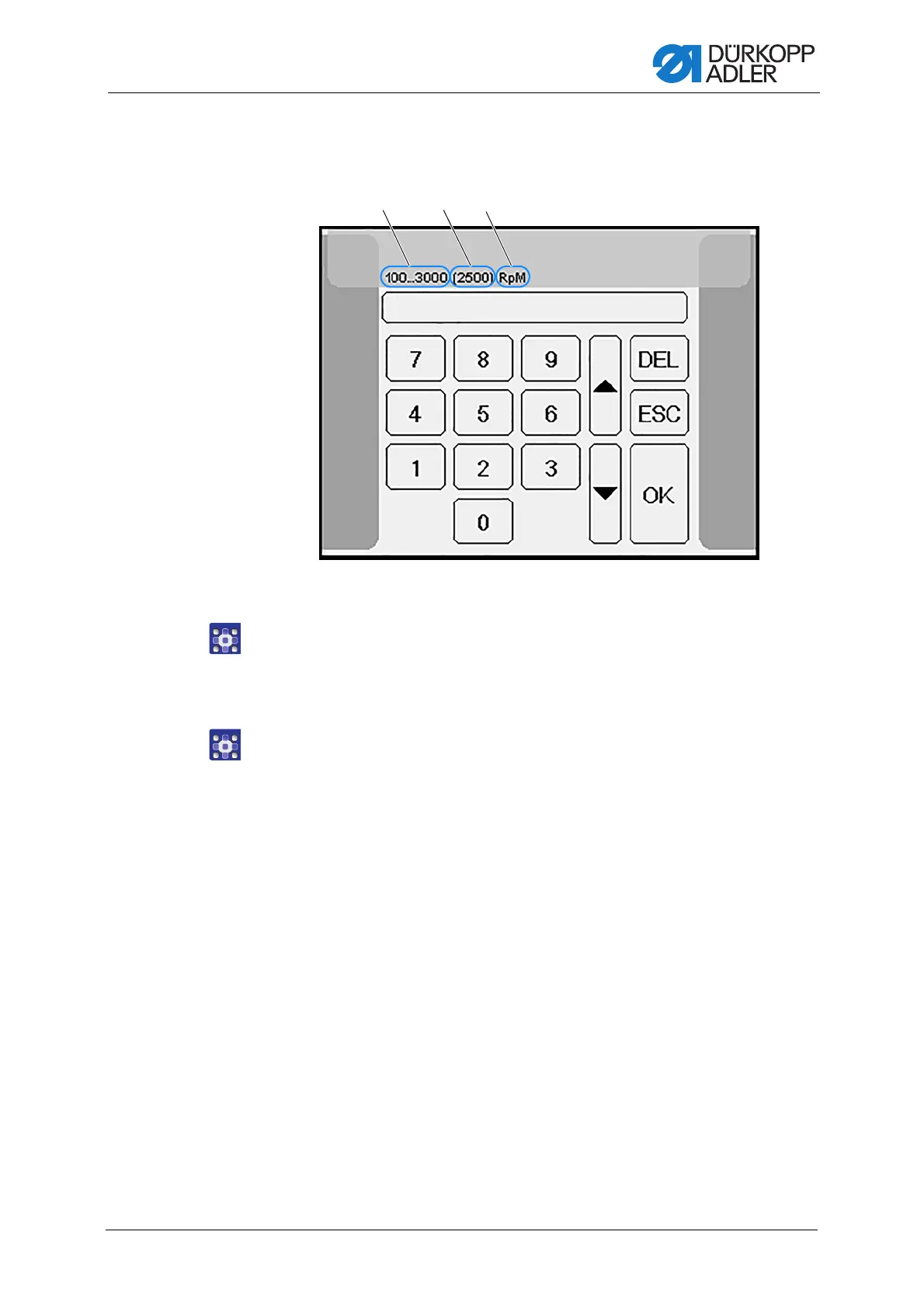

Fig. 262: Entering values using the numeric keypad

To enter values using the numeric keypad:

1. Enter the desired value.

2. Confirm with OK.

To enter a negative value on the numeric keypad:

1. Enter the desired value.

2. Press the +/- button.

 The value is given a - sign and becomes negative.

3. Confirm with OK.

(1) - Value range

(2) - Preset value

(3) - Unit

①②③
