Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 305

Set correction values of the positioning points

 The display switches to Set positioning point correction

value.

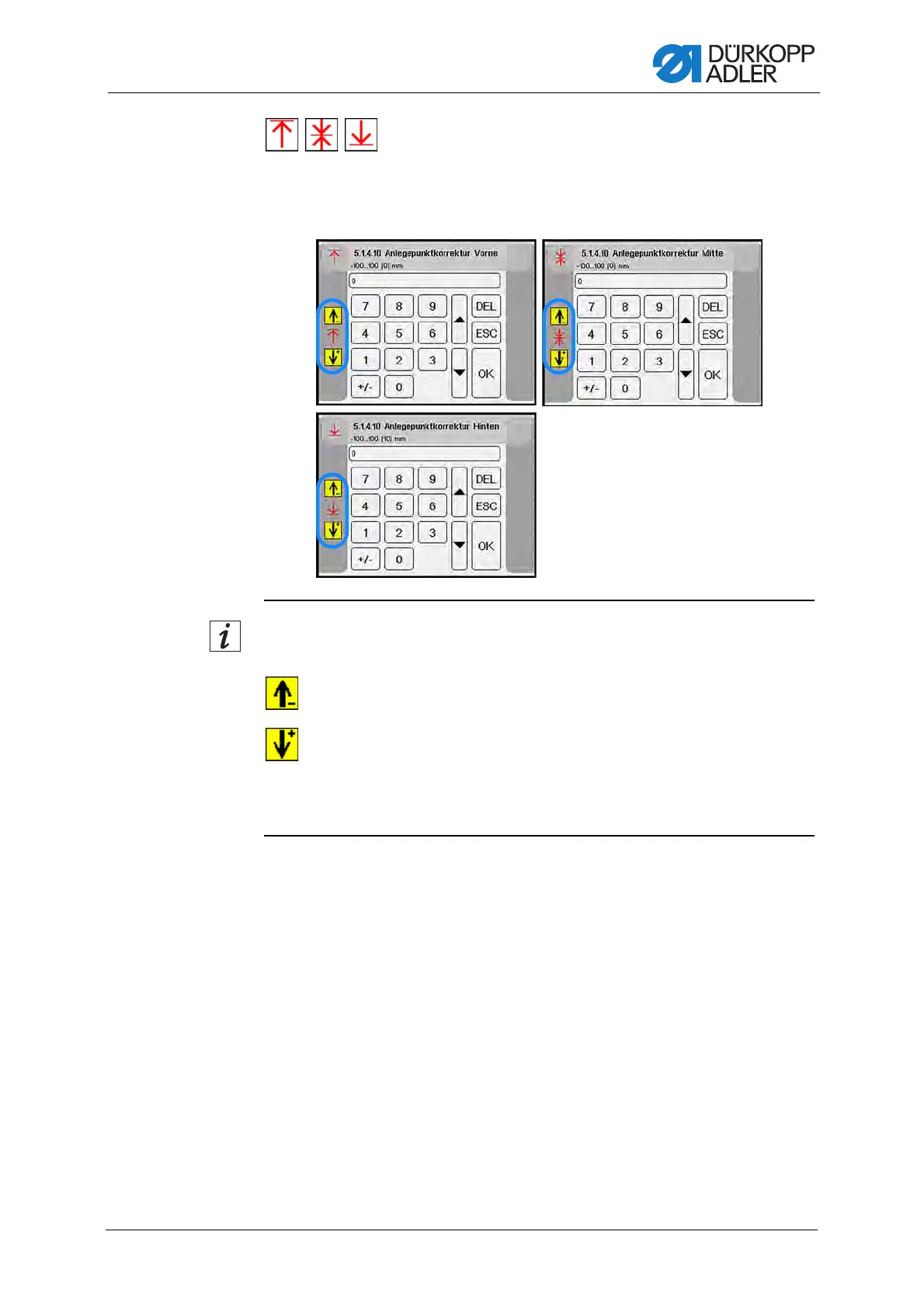

Fig. 287: Set correction values of the positioning points

Information

The arrows in the left half of the display indicate the correction direction:

Correction inward

Correction outward

The set correction value is adopted for all 3 positioning points when you

switch positioning points.
