Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 317

Needle transport

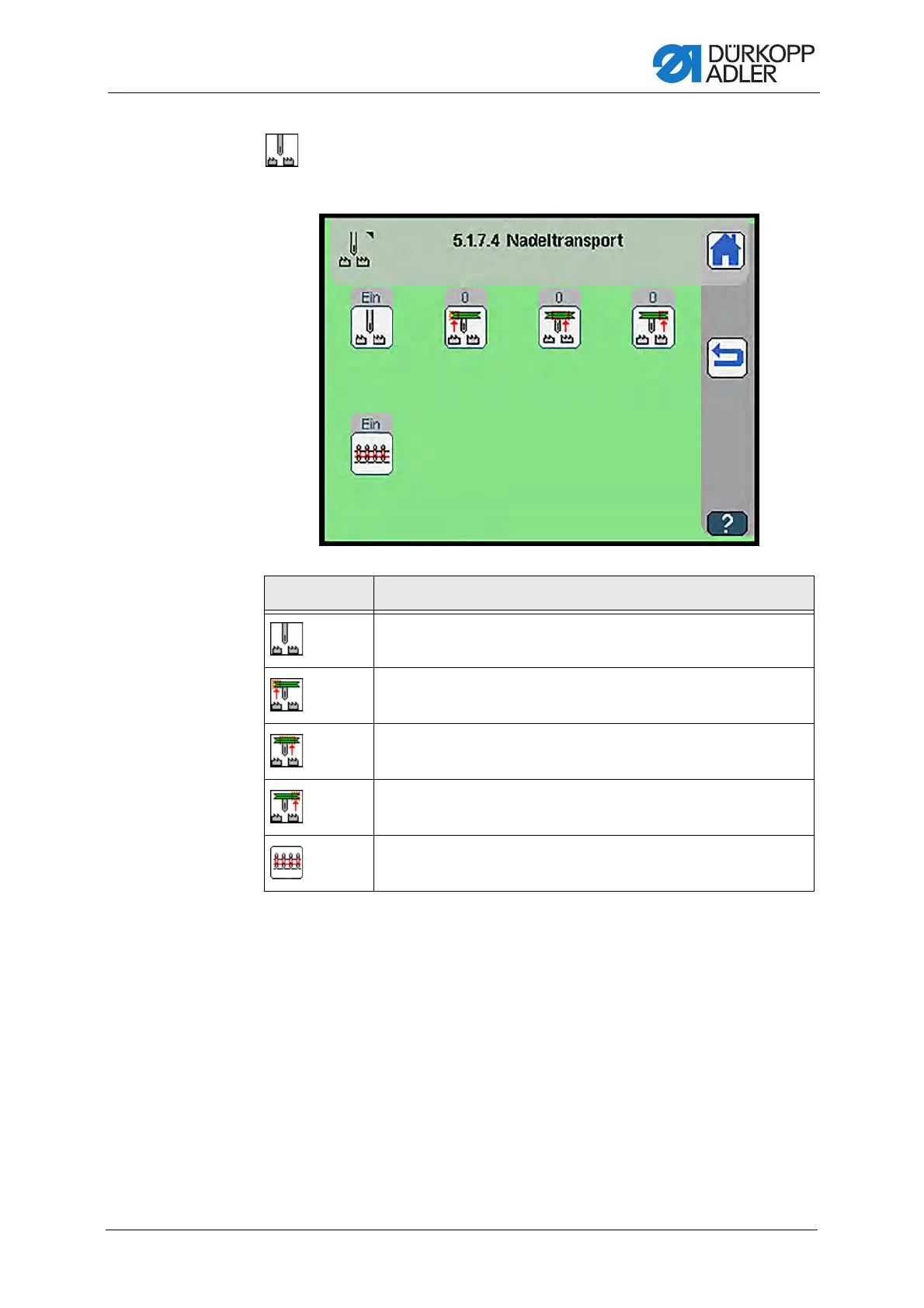

Fig. 299: Needle transport

Symbols Meaning

Needle transport On/Off

Set needle transport at seam beginning

• 0 - 100 %

Set needle transport in main seam

• 0 - 100 %

Set needle transport at seam end

• 0 - 100 %

Knitwear On/Off

Default Chapter3
