Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 329

Automatic tape feeder

 The display switches to Automatic tape feeder.

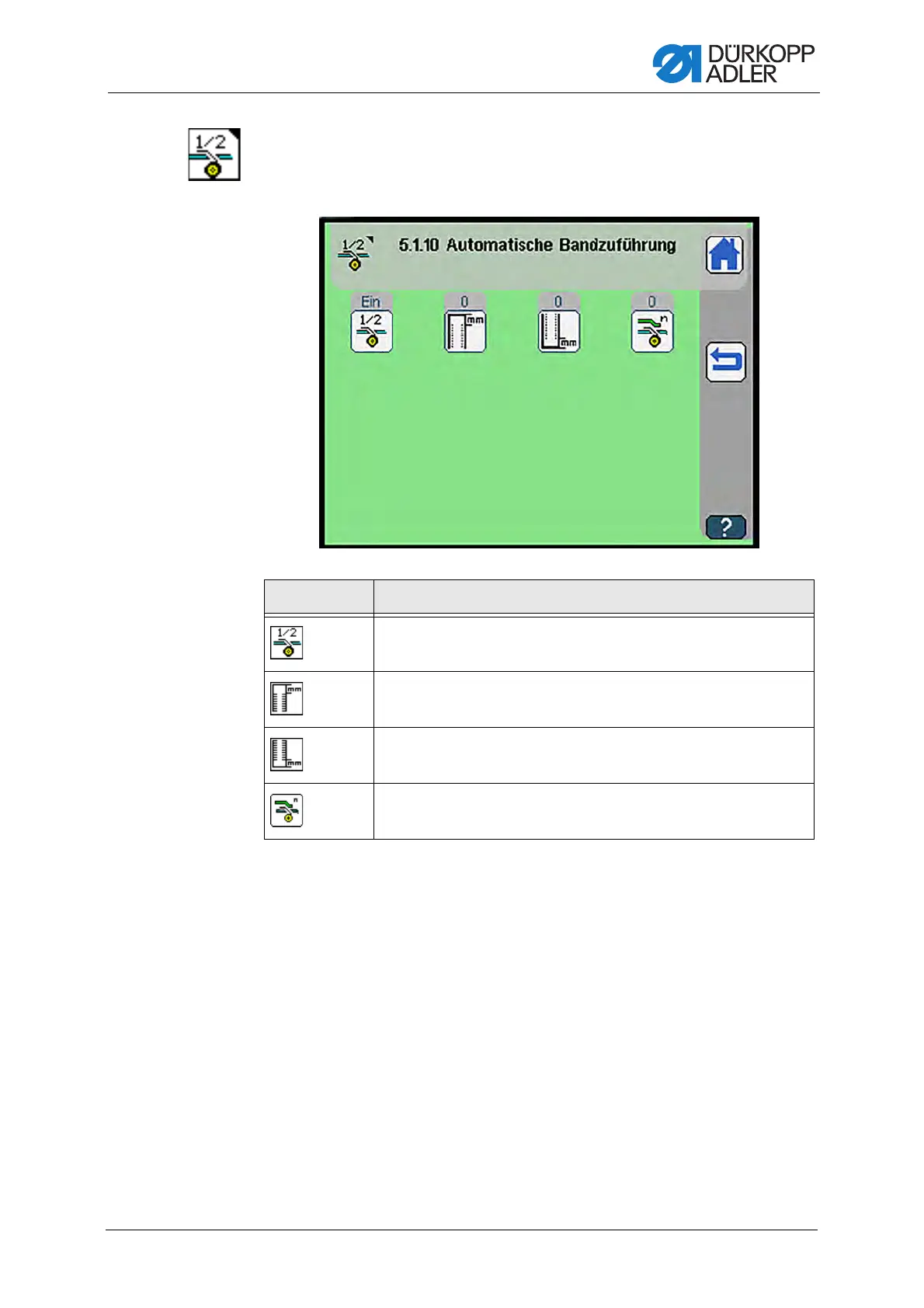

Fig. 309: Automatic tape feeder

Symbols Meaning

Automatic tape feeder On/Off

Set length of tape at seam begin.

• 0 - 99 mm

Set length of tape at seam end

• 0 - 99 mm

Set clamp speed during transport with tape feed switched on

• 10 - 100 %

Default Chapter3
