Programming

Service Instructions 755 A/756 A - 00.0 - 02/2019 371

2. Press the desired button.

3. Enter the desired value using the numeric keypad.

4. Confirm with OK.

Adjust corner knife

Corner knife seam begin. left UP/DOWN

Adjust angle seam begin. left  p. 372

• only for configuration: multi-functional corner knife station

• 0.0° - 30.0°

Set knife block seam begin left

• -13mm - 13 mm

Adjust angle seam begin. right  p. 372

• only for configuration: multi-functional corner knife station

• 0.0° - 30.0°

Corner knife seam begin. right UP/DOWN

Corner knife seam end left UP/DOWN

Adjust angle seam end left  p. 372

• only for configuration: multi-functional corner knife station

• 0.0° - 30.0°

Set knife block seam end left

Adjust angle seam end right  p. 372

• only for configuration: multi-functional corner knife station

• 0.0° - 30.0°

Corner knife seam end right UP/DOWN

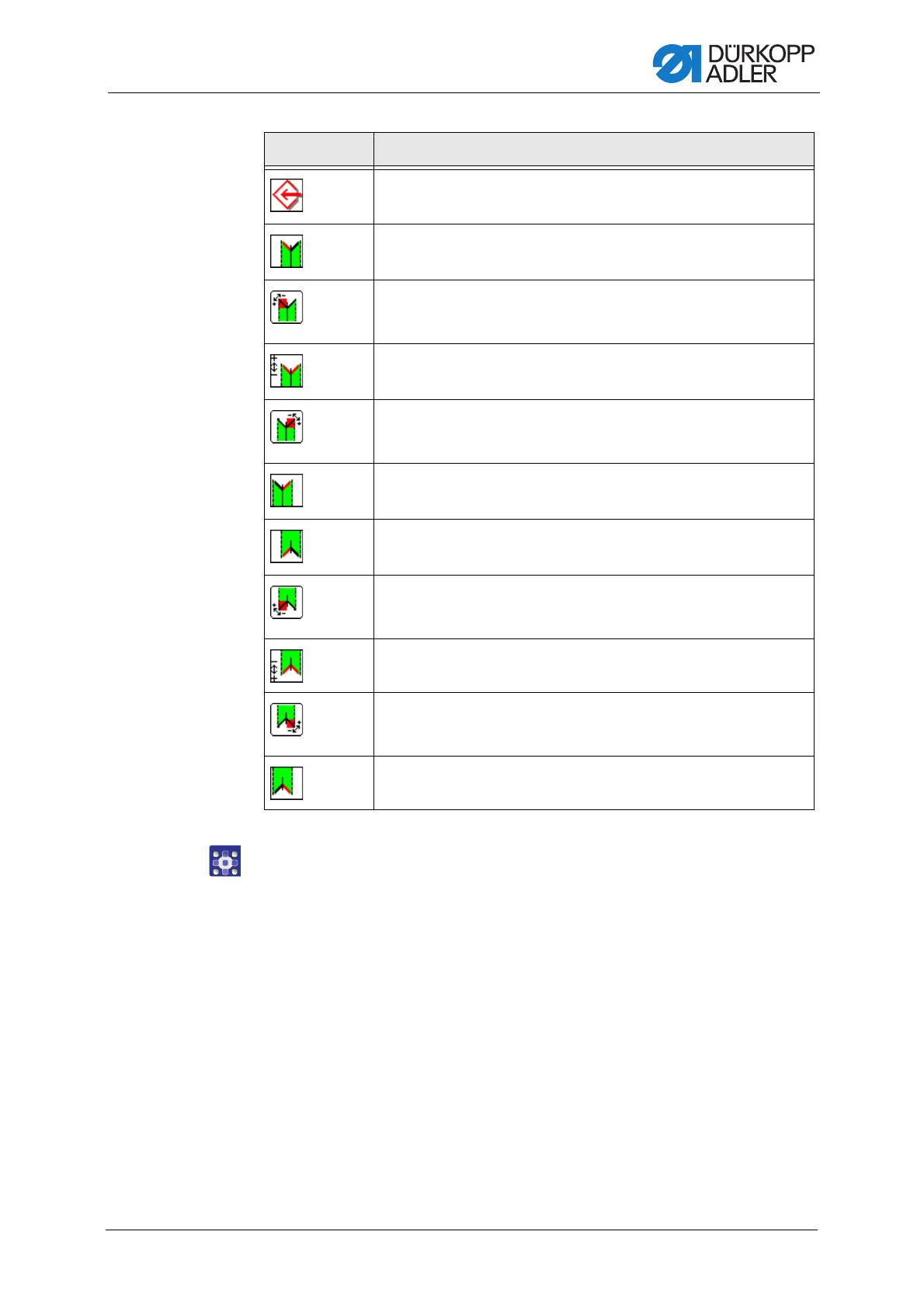

Symbols Meaning
