Needle bar
52 Service Instructions 755 A/756 A - 00.0 - 02/2019
27. Loosen the screw (16).
28. Loosen the screw (17).
Fig. 48: Assembling the needle bar linkage (8)

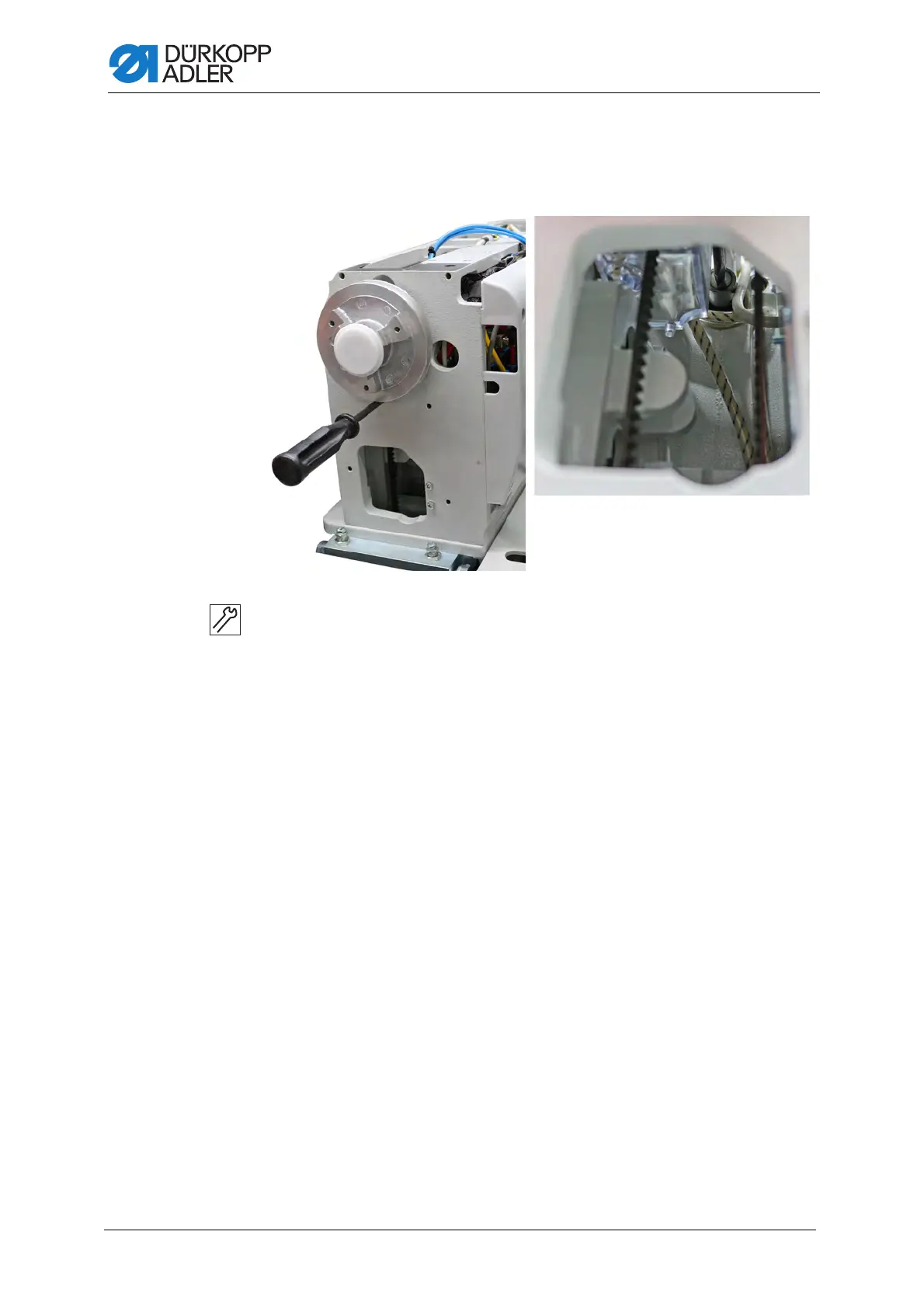

29. Insert a screwdriver through the slot below the handwheel and into the
slot on the shaft.
30. Turn the shaft and set the distance between needle bar linkage and
clamping piece to 0.25 mm.
Use a feeler gage to check the setting.
31. Tighten the screw (16).
32. Tighten the screw (17).
33. Check the distance between needle bar linkage and clamping piece
and readjust it if necessary.
