Adjusting the safety release clutch
98 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
16 Adjusting the safety release clutch
The safety release clutch disengages in the event of the thread jamming
and thus prevents the hook from being misadjusted or damaged.
16.1 Engaging the safety release clutch
Proper setting

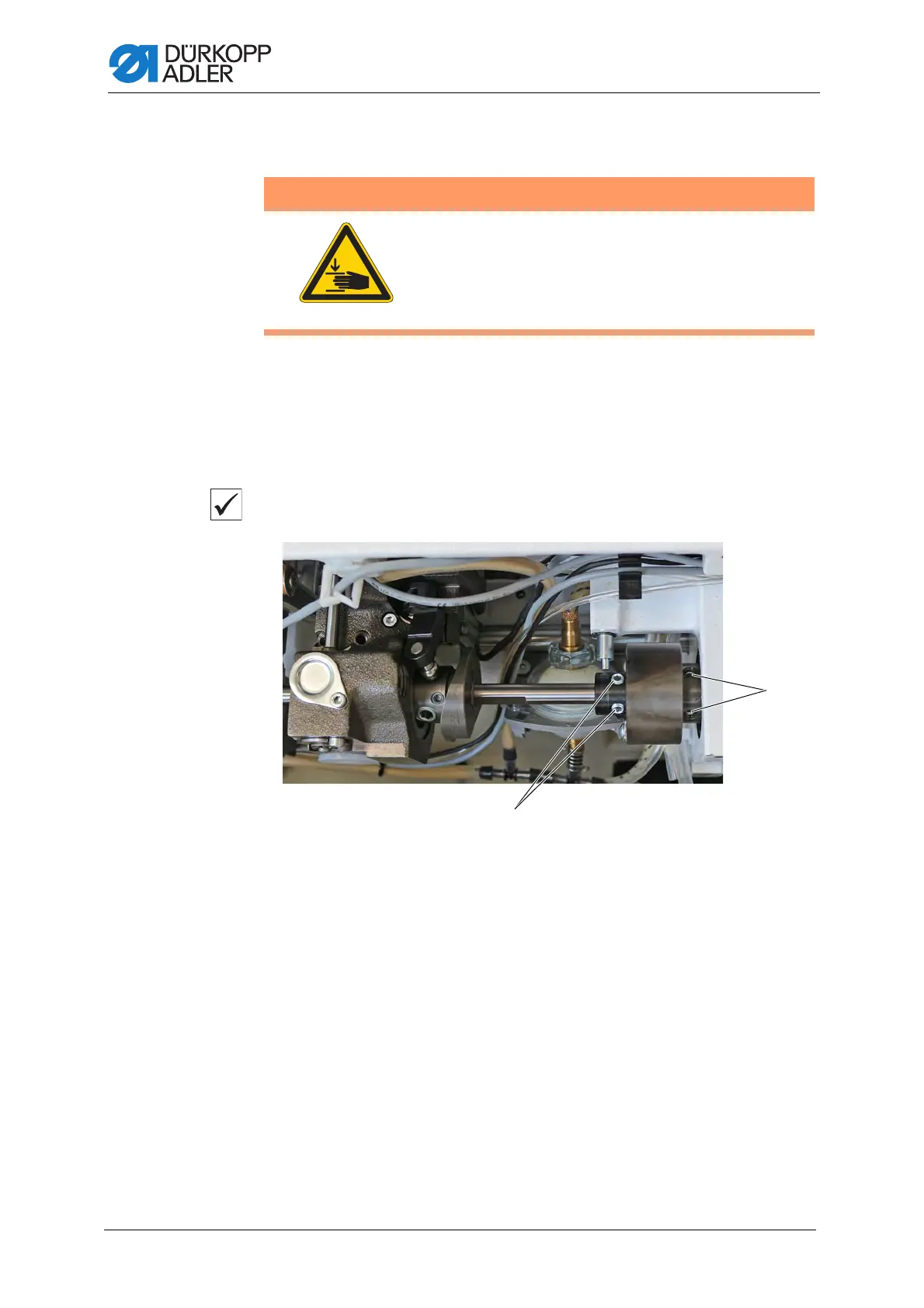

Fig. 80: Engaging the safety release clutch (1)
When the safety release clutch is engaged, threaded pins (1) and (2) are
parallel (figure above).
When the safety release clutch is disengaged, threaded pins (1) and (2)
are not parallel.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you adjust the safety
release clutch.
(1) - Threaded pins (2) - Threaded pins
