Working basis

Service Instructions M-TYPE DELTA - 00.0 - 12/2019 23

3.4.6 Disassembling and assembling the toothed belt cover

Toothed belt cover with handwheel cover

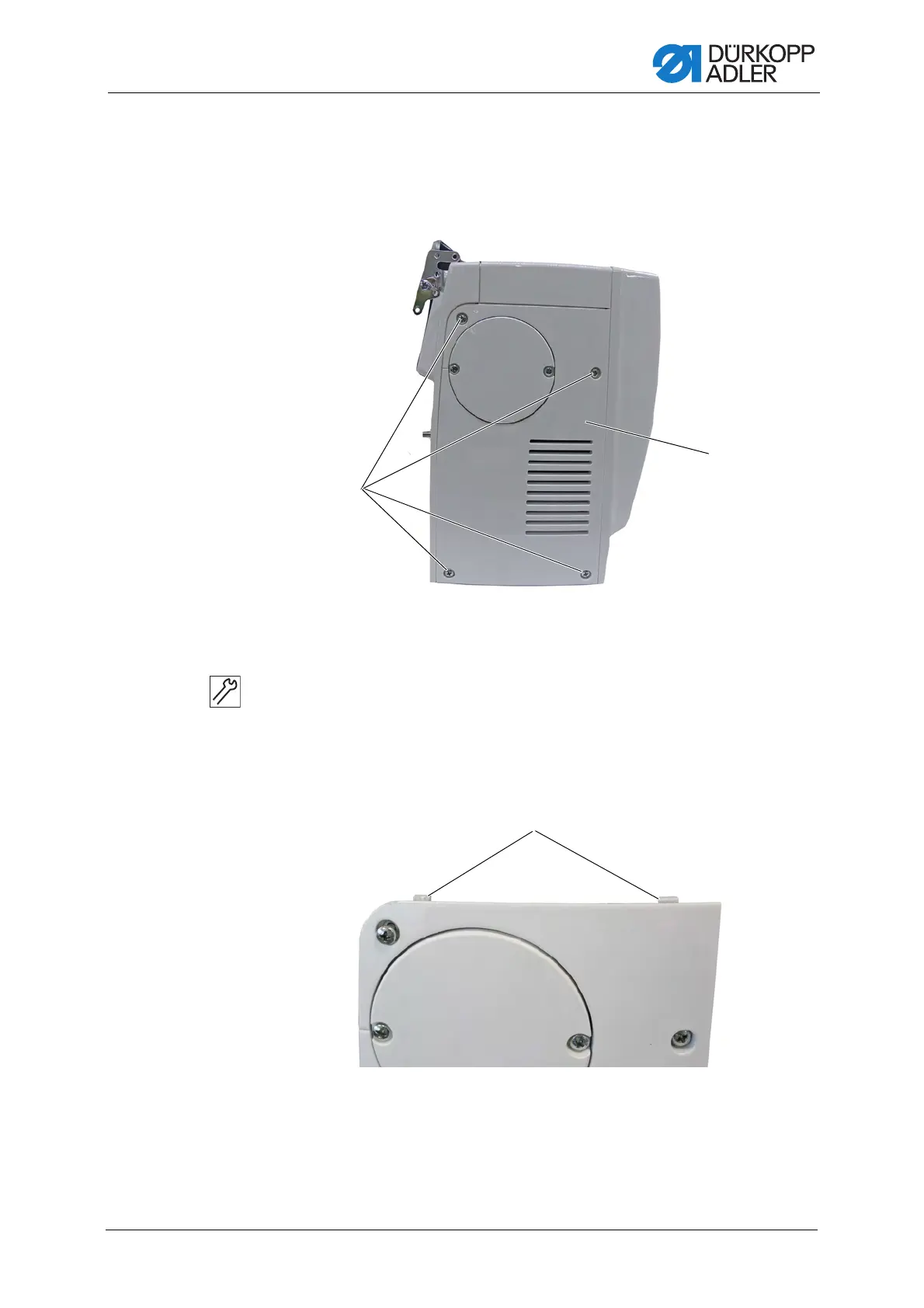

Fig. 11: Toothed belt cover with handwheel cover (1)

Disassembling the toothed belt cover

To disassemble the toothed belt cover:

1. Loosen the screws (1).

2. Remove the toothed belt cover (2); start by disassembling the cover

from below.

Fig. 12: Toothed belt cover with handwheel cover (2)

(1) - Screws (2) - Toothed belt cover

①

②

(3) - Plates

③
