Working basis
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 21
3.4.4 Disassembling and assembling the head cover

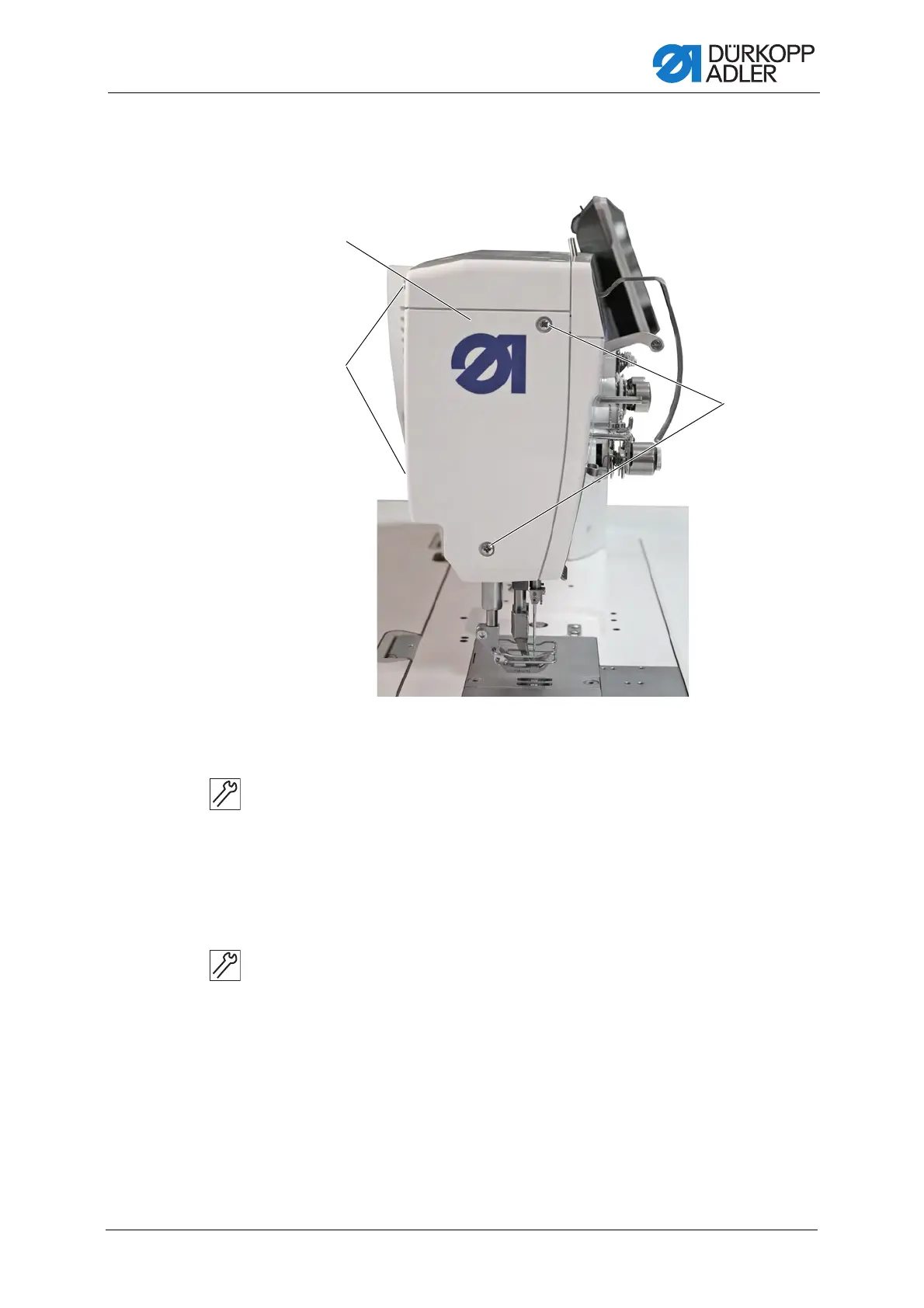

Fig. 9: Disassembling and assembling the head cover
Disassembling the head cover
To disassemble the head cover:
1. Loosen the screws (2).
Caution: 2 screws at the front on the head cover, 2 screws on the rear
of the machine.
2. Disassemble the head cover (1).
Assembling the head cover
To assemble the head cover:
1. Assemble the head cover (1).
2. Tighten the screws (2).
(1) - Head cover (2) - Screws
