DURKOPP ADLER D867 M-Type Delta

Programming
166 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
• Function module 3
• Function module 4
• Function module 5
• Function module 6
• Function module 7
• Function module 8
• Sewing light
• Machine head lighting
19.6.3 Role Main Screen Configuration

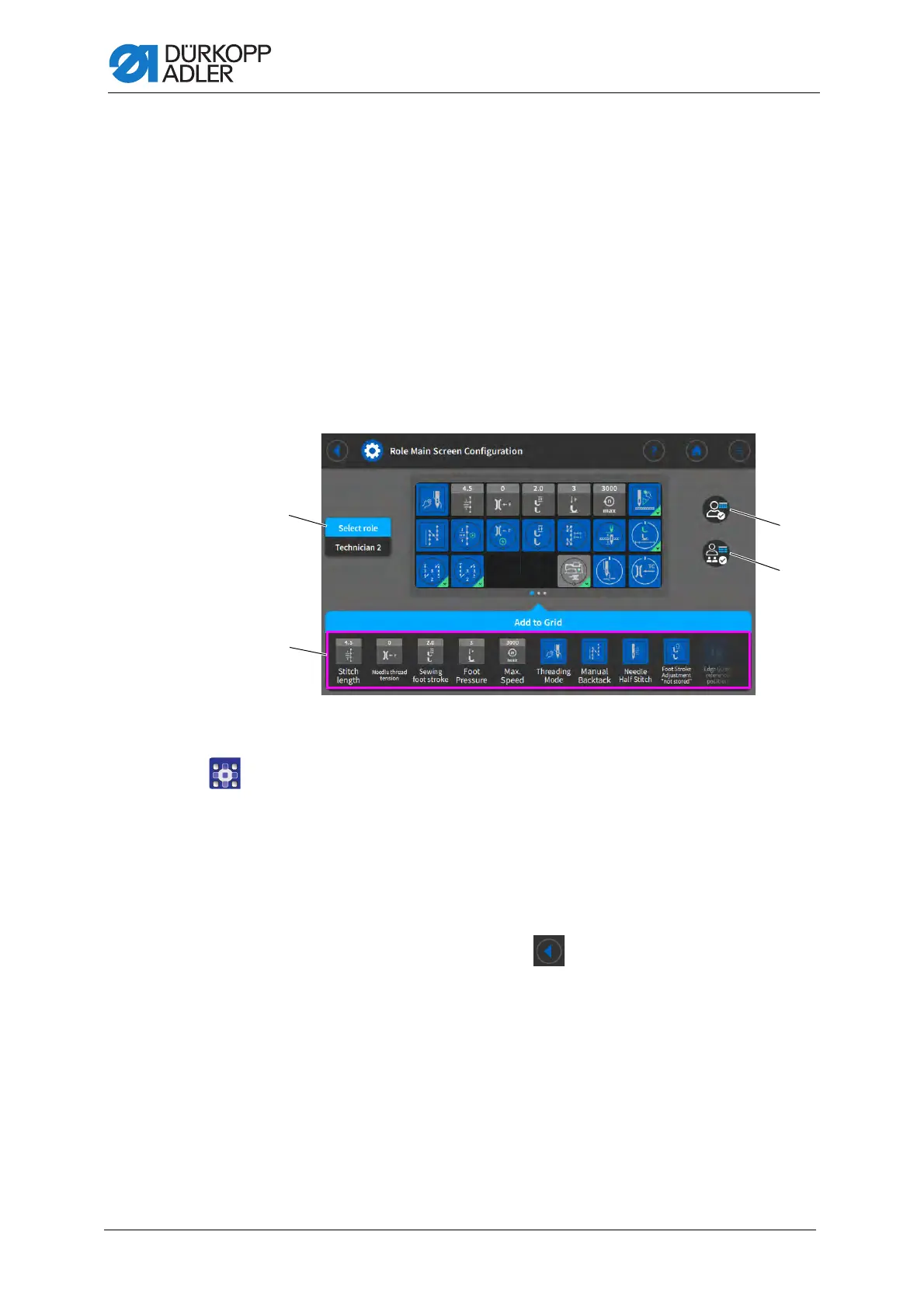

Fig. 113: Role Main Screen Configuration (1)
To configure the main screen for a role:
1. Press the Select role button to select the desired role.
2. Press the Role / Users + Role button.
 Button Role: Changes only apply to the role.
Button Users + Role: the changes apply to the role and all users that
have been assigned this role.
3. Pick the desired tile from the bar (2) and add it to the grid.
4. To save the settings, press the button.
 The display switches to:
(1) - Button Select role
(2) - Bar
(3) - Button Role
(4) - Button Users + Role
③
④
①
②
