Maintenance
194 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
The machine is equipped with a central oil-wick lubrication system.
The bearings are supplied from the oil reservoir.
For topping off the oil reservoir, use only lubricating oil DA 10 or oil of
equivalent quality with the following specifications:
• Viscosity at 40 °C: 10 mm²/s
• Flash point: 150 °C
You can order the lubricating oil from our sales offices using the following
part numbers:
20.2.1 Lubricating the machine head

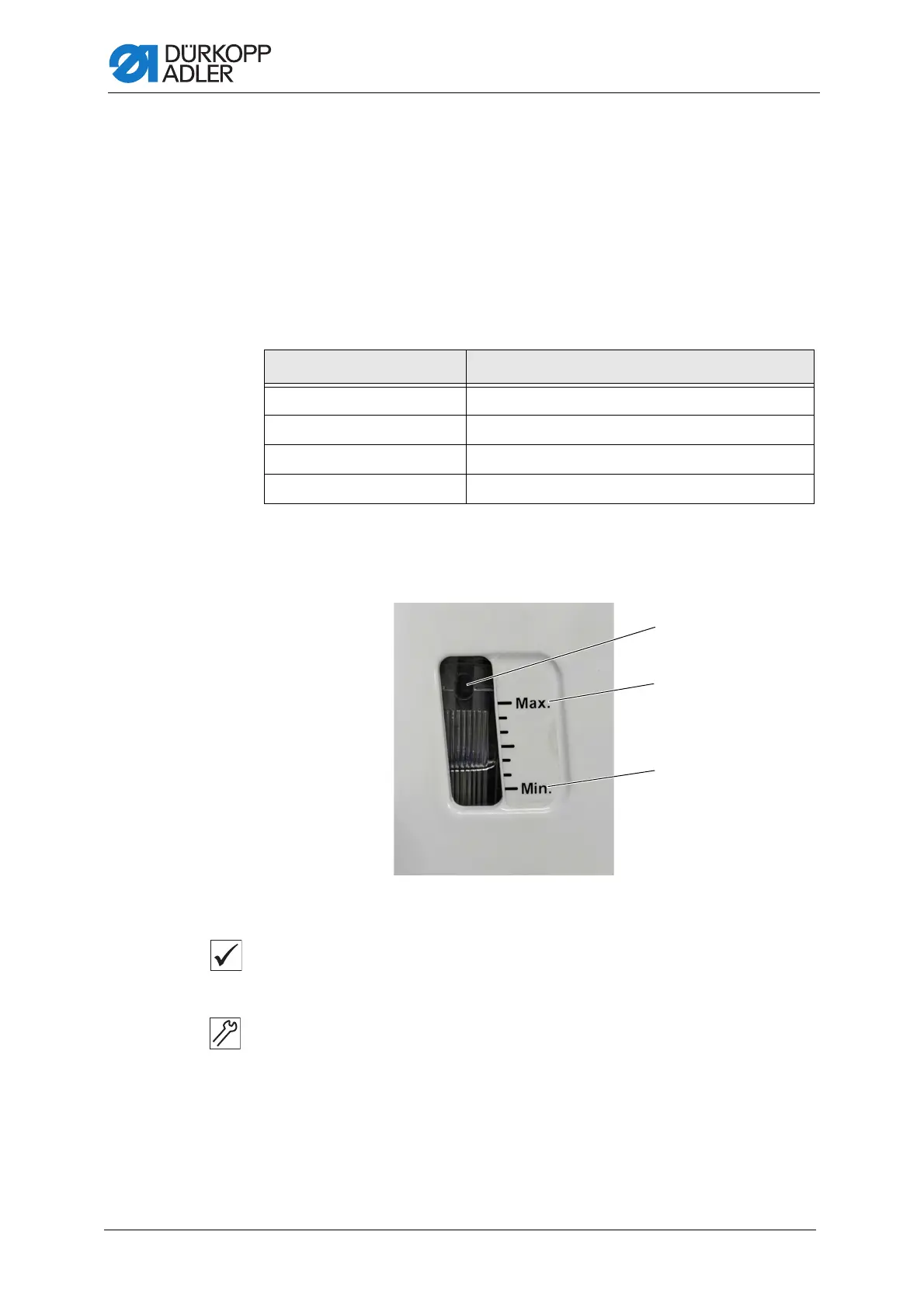

Fig. 133: Lubricating the machine head
Proper setting
The oil level is between the minimum level marking (3) and the maximum
level marking (2).
To lubricate the machine head:
1. Check the oil level indicator at the inspection glass every day.
2. If the inspection glass lights up red, the machine is not sufficiently
supplied with oil.
3. If the oil level is below the minimum level marking (3): Pour oil through
the refill opening (1) but no higher than the maximum level marking (2).
Container Part no.
250 ml 9047 000011
1 l 9047 000012
2 l 9047 000013
5 l 9047 000014
(1) - Refill opening
(2) - Maximum level marking
(3) - Minimum level marking
