Working basis
32 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
3.8 Locking the machine in place
For some adjustments, the machine must be locked in place in the looping
stroke position. The position corresponds to handwheel position 202°.
To do this, the locking peg from the accessory pack is inserted into the slot
on the arm shaft crank, blocking the arm shaft.

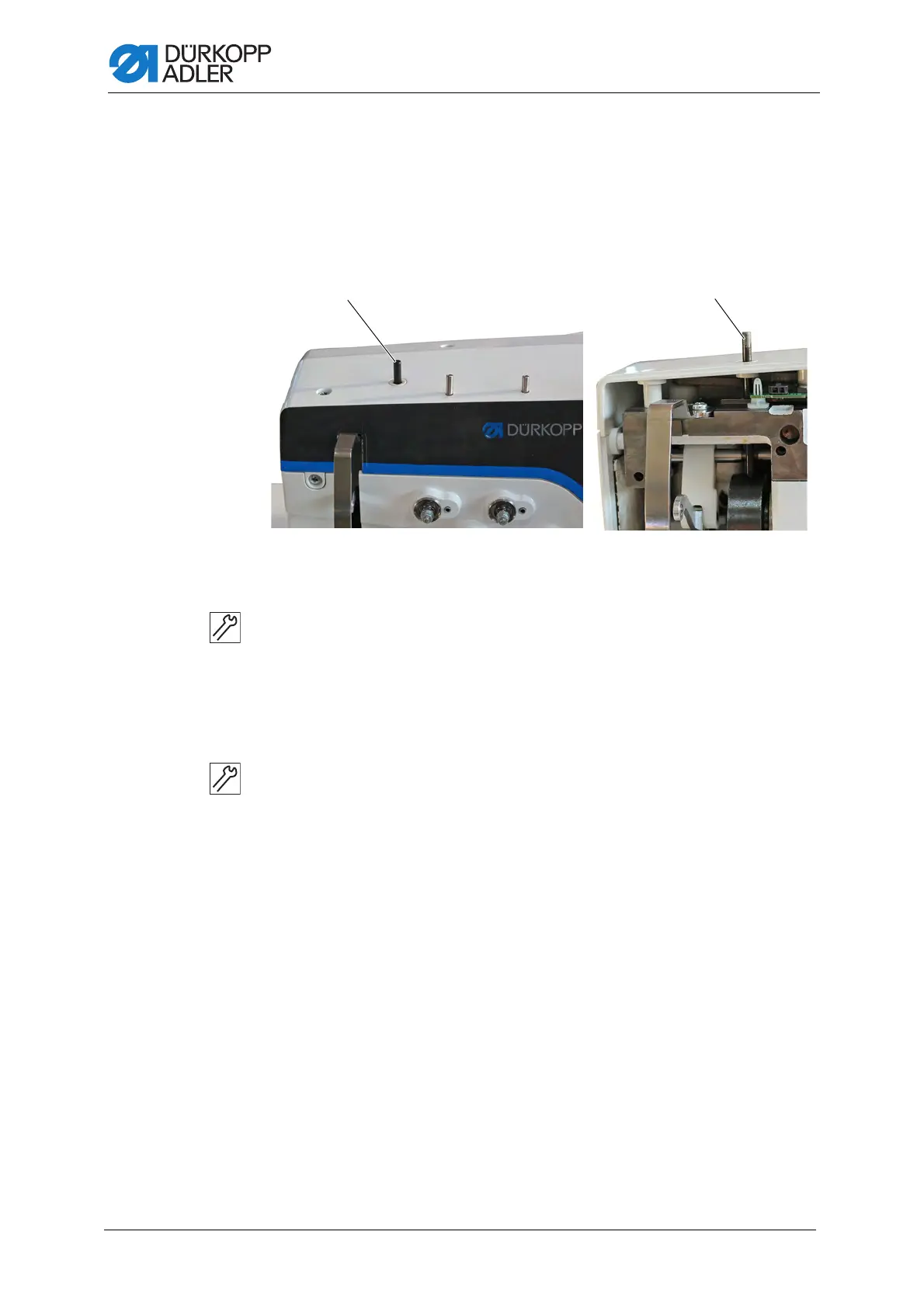

Fig. 21: Locking the machine in place
Locking the machine in place
To lock the machine in place:
1. Insert the locking peg (1) through the slot in the machine arm.
2. Carefully turn the handwheel until the locking peg (1) slides into the slot
on the arm shaft crank.
Removing the lock
To remove the lock:
1. Insert the locking peg (1) through the slot in the machine arm.
(1) - Locking peg
