Restoring the basic eccentric settings
36 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
5 Restoring the basic eccentric settings
5.1 Adjusting the eccentrics for sewing foot stroke, feed dog
lift and feed dog movement

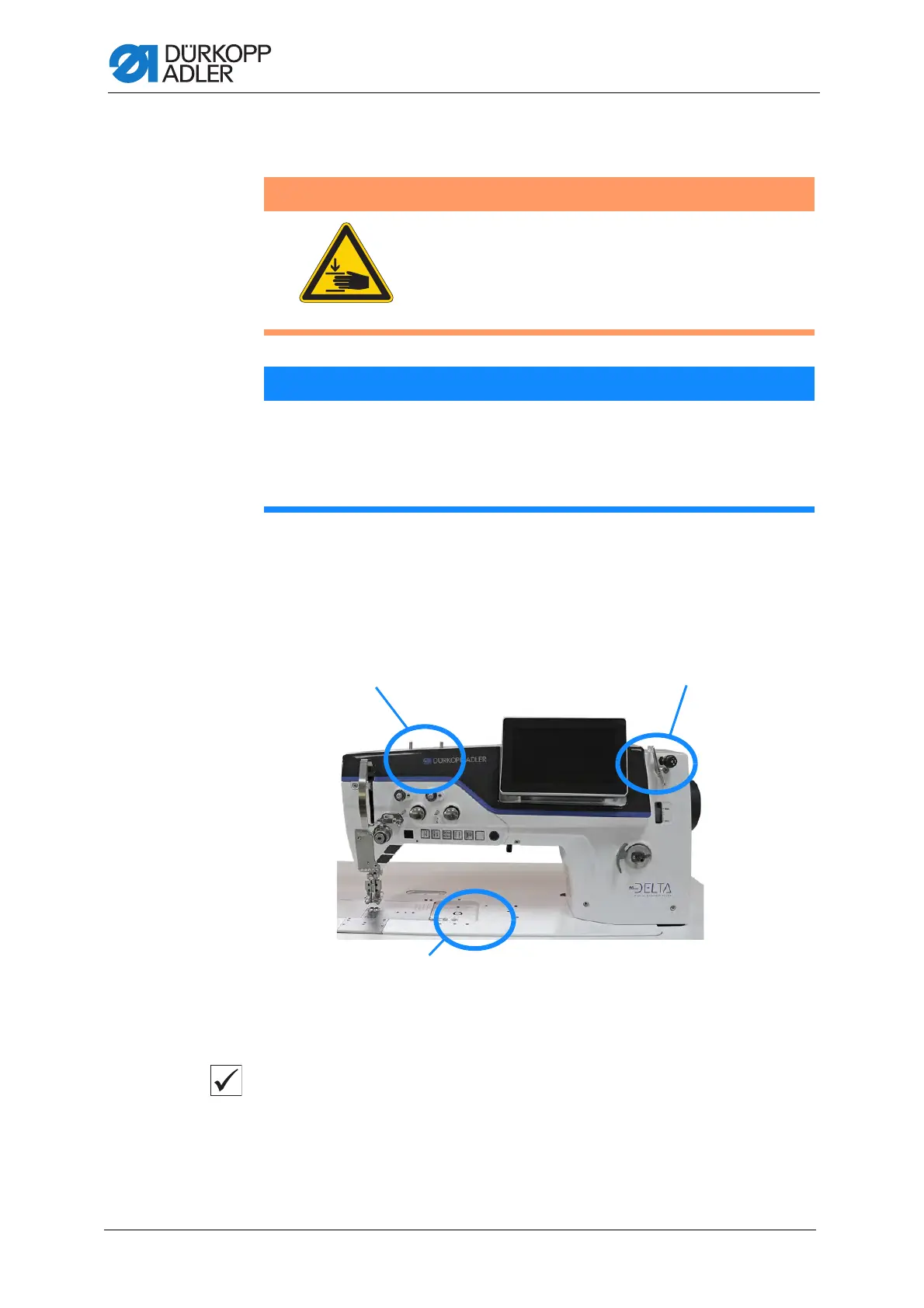

Fig. 24: Adjusting the eccentrics - overview: position of the eccentrics
The looping stroke securing position allows you to set the initial position
for sewing foot stroke, feed dog lift and feed dog movement.
Proper setting
The markings on each eccentric are positioned correctly relative to one
another.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you set the
eccentrics.
NOTICE
Property damage may occur!
Improperly tightened screws can result in material damage at the
machine.
Always tighten both screws on the flats.
Sewing foot stroke Feed dog movement
Feed dog lift
