Short thread cutter (KFA)
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 85
14 Short thread cutter (KFA)
14.1 Adjusting the lower lever and the curve

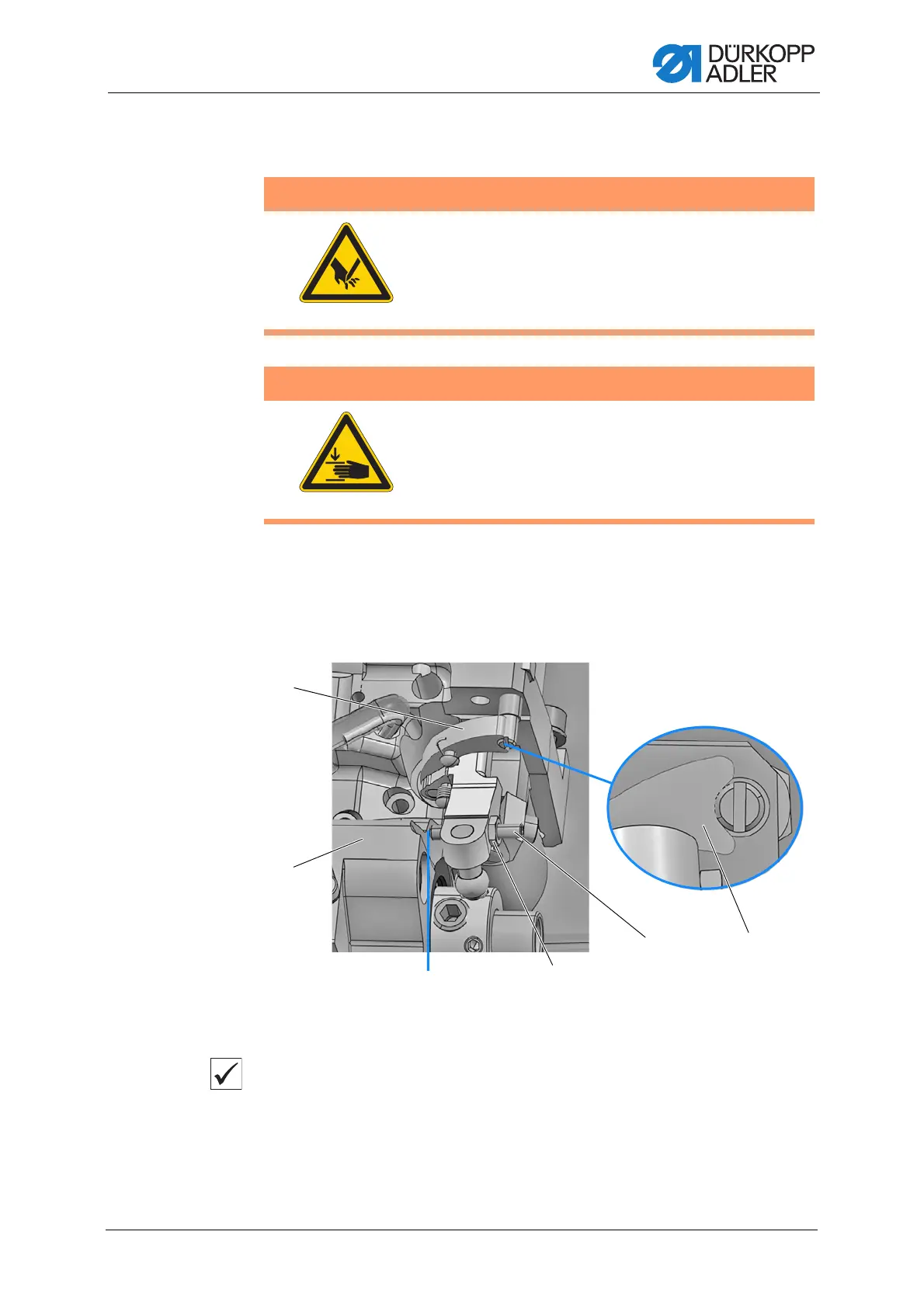

Fig. 69: Adjusting the lower lever and the curve
Proper setting
There should be no more than 0.1 mm of play between the screw (3) and
the hook bearing (2).
WARNING
Risk of injury from sharp parts!
Cutting injuries may be sustained.
Switch off the machine before adjusting the short
thread cutter.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the short
thread cutter.
(1) - Latch
(2) - Hook bearing
(3) - Nut
(4) - Screw
Max. 0.1 mm
③
④①
①
②
