Working basis
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 31
3.7 Flats on shafts

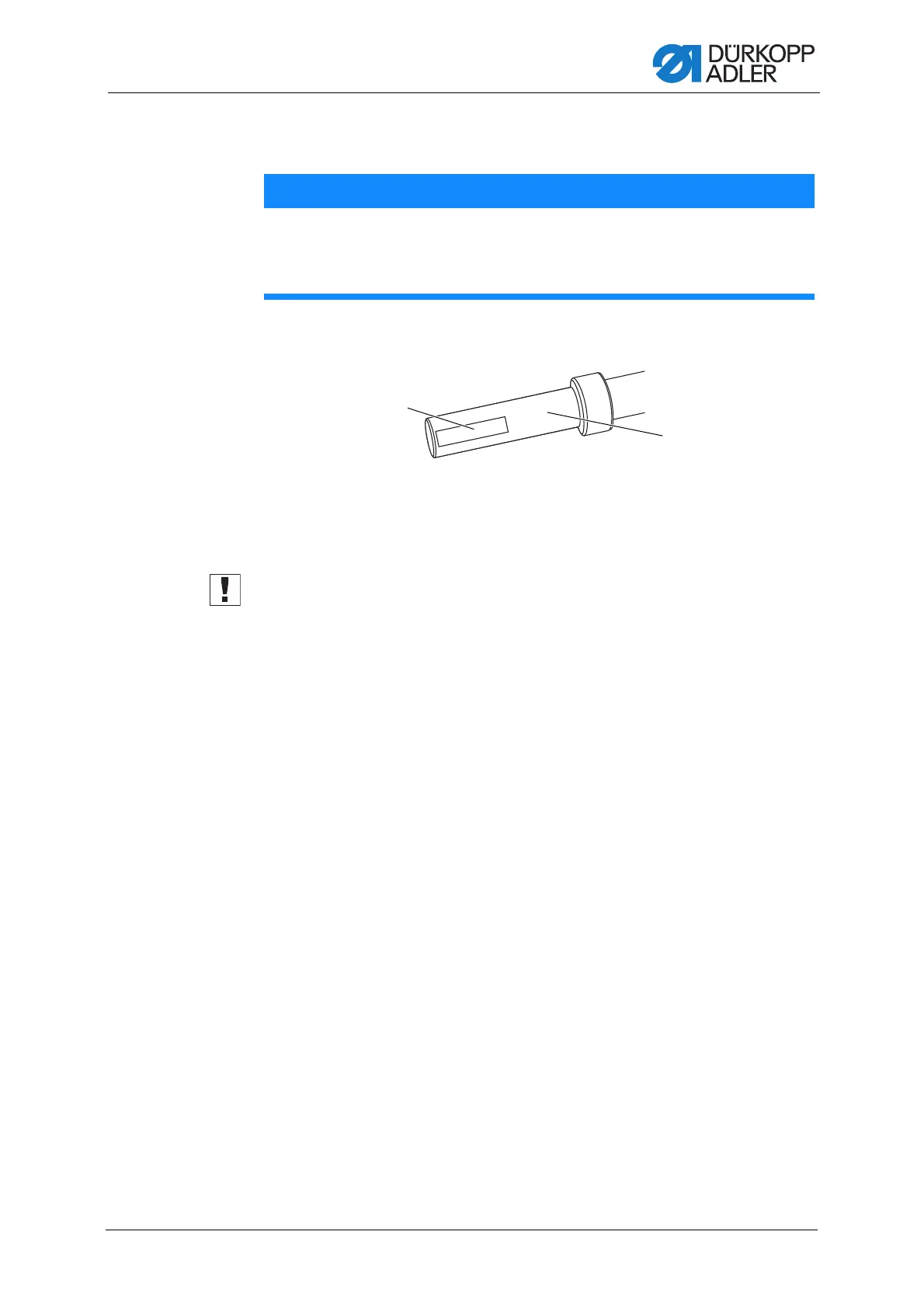

Fig. 20: Flats on shafts
Some shafts have flat surfaces at the points where the components are
screwed on. This stabilizes the connection and makes adjusting easier.
Important
Always ensure that the screws are completely flush with the surface.
The rule is to always place the 1
st
screw in rotational direction onto
the flat.
NOTICE
Property damage may occur!
An incorrect setting can result in material damage at the machine.
Always place the first screw in rotational direction onto the flat.
(1) - Flat (2) - Shaft
