Sewing motor
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 111
18.3 Assembling the sewing motor

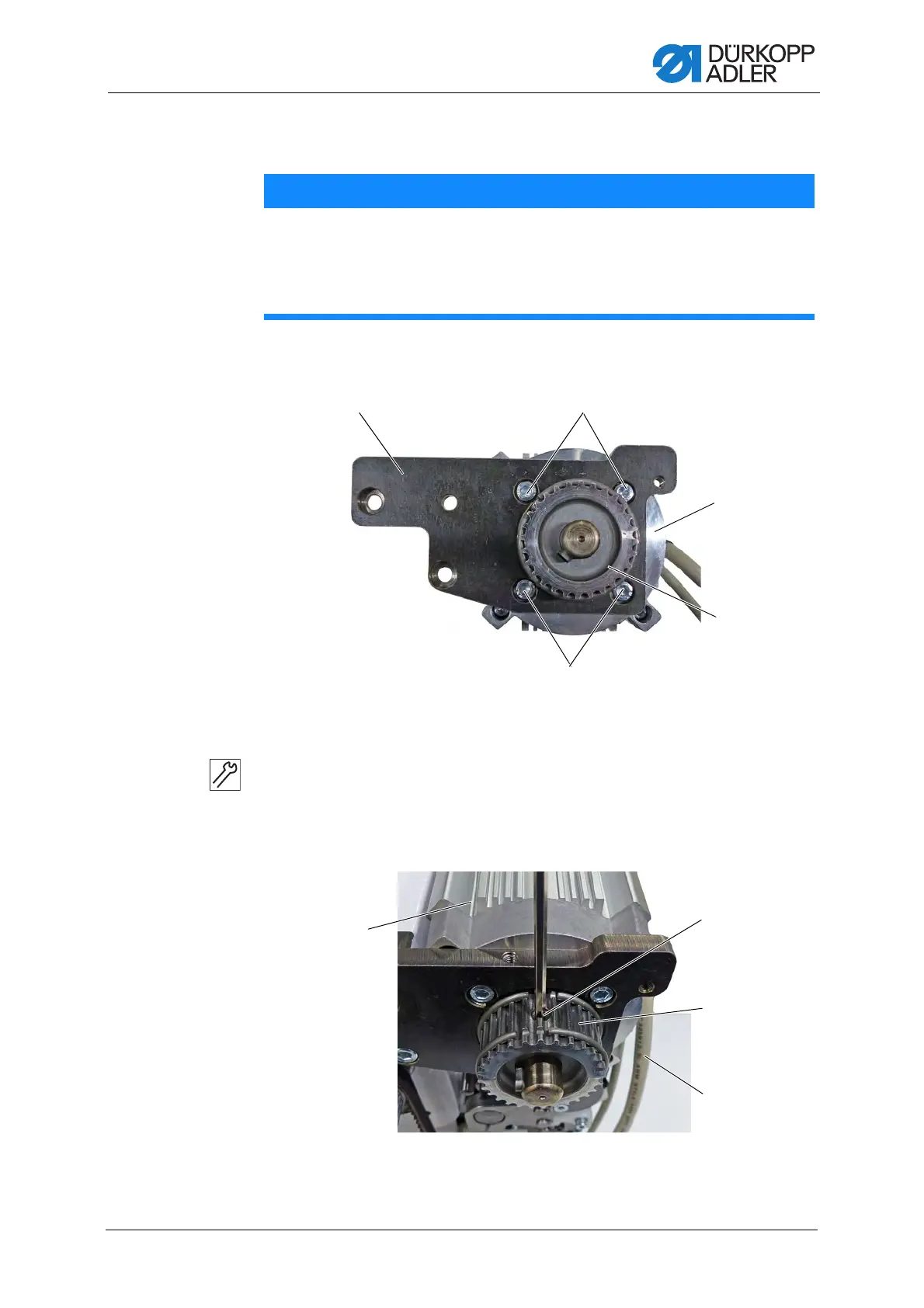

Fig. 97: Assembling the sewing motor (1)
To assemble the sewing motor:
1. Tighten the motor (4) to the support plate (1) using 4 screws (2).
2. Fit the toothed belt wheel (3)
Fig. 98: Assembling the sewing motor (2)
NOTICE
Property damage may occur!
Possible damage to the PCB.
Make sure the toothed belt runs straight and along the center of
the toothed belt wheels.
(1) - Support plate
(2) - Screws
(3) - Toothed belt wheel
(4) - Motor
(3) - Toothed belt wheel
(4) - Motor
(5) - Cable
(6) - Threaded pin
