Maintenance
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 201
20.4.2 Restoring the initial position of the hook support
Following the disassembly of the hook support, e.g. for the purpose of
converting the thread trimmer, the basic setting of the hook support needs
to be restored.

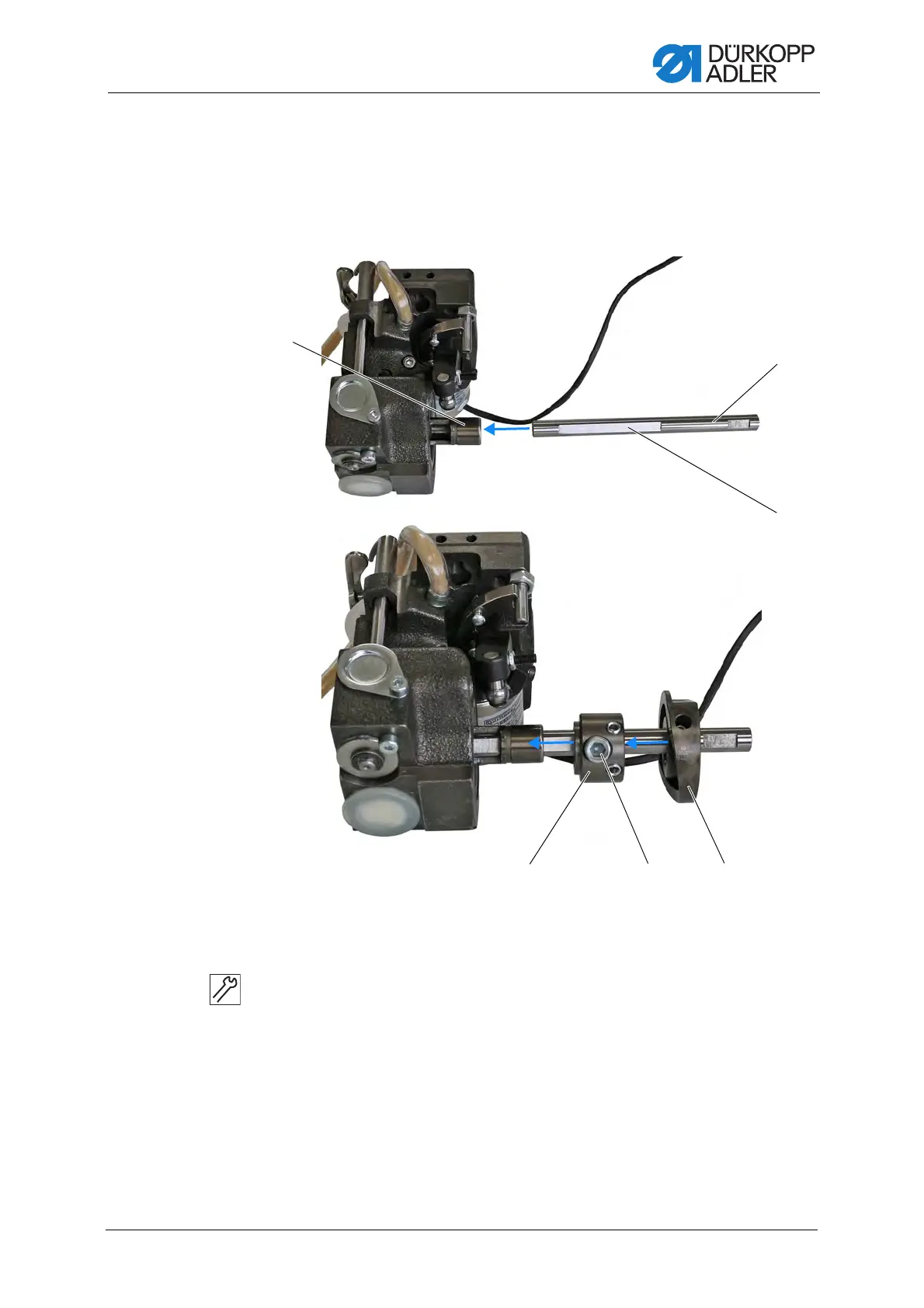

Fig. 140: Restoring the basic setting of the hook support
To restore the basic setting of the hook support:
1. Slide the hook shaft (6) into the socket (1) of the hook support such
that the flat (5) of the hook shaft (6) is visible in the slot of the socket (1).
The flat (5) is centered in the slot of the socket (1).
2. Slip the set collar (2) over the hook shaft (6) and onto the socket (1).
3. Push the set collar (2) up against the hook support.
4. Tighten the threaded pin (3) on the flat (5) of the hook shaft (6).
(1) - Socket
(2) - Set collar
(3) - Threaded pin
(4) - Thread trimmer cam
(5) - Flat
(6) - Hook shaft
