Sewing feet
68 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
5. Lower presser foot (2) and walking foot (1) to the level of the throat
plate.
6. Re-tighten the screw (3).
Checking the setting
To check the setting:
1. Set the sewing foot stroke to 3 in the seam program.
2. Press the Service Stop button.
3. With the sewing feet at top dead center, use a 3 mm allen key to check
if the stroke distance is identical.
4. Readjust if necessary.
10.3 Adjusting the sewing foot pressure and sewing foot lift

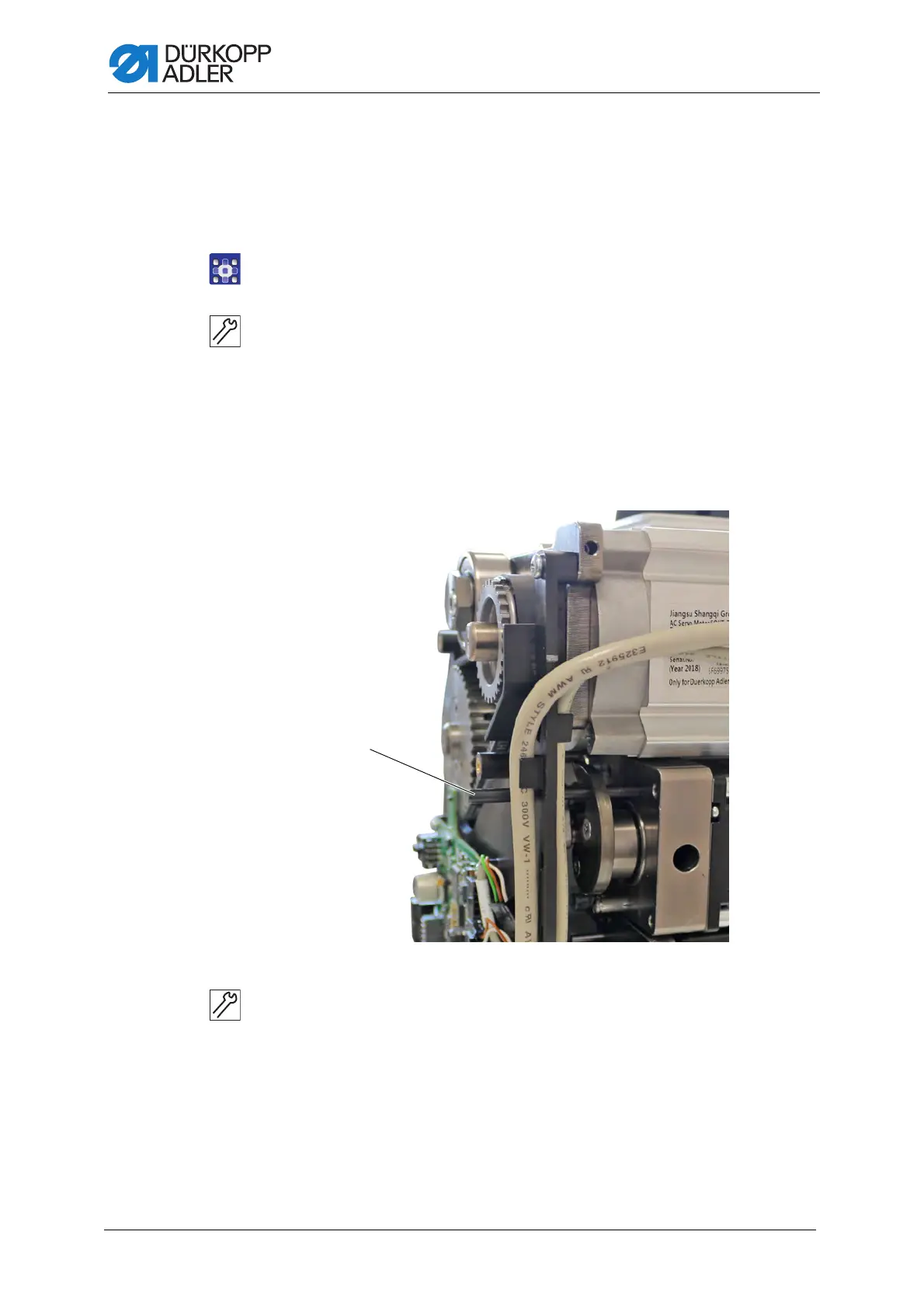

Fig. 54: Adjusting the sewing foot pressure and sewing foot lift (1)
To adjust the sewing foot pressure and the sewing foot lift:
1. Switch off the machine.
2. Disassemble the toothed belt cover ( p. 23).
3. Disassemble the motor cover ( p. 22).
4. Insert the locking peg (∅ 5 mm) (1).
(1) - Locking peg
①
