Restoring the basic eccentric settings
40 Service Instructions M-TYPE DELTA - 00.0 - 12/2019
5.2 Adjusting the compensating weight
Proper setting
The screw of the compensating weight is at the same height as the 1
st
screw
in the direction of rotation of the eccentric used for the feed dog movement.
The compensating weight does not collide on the side with the transmission
lever.

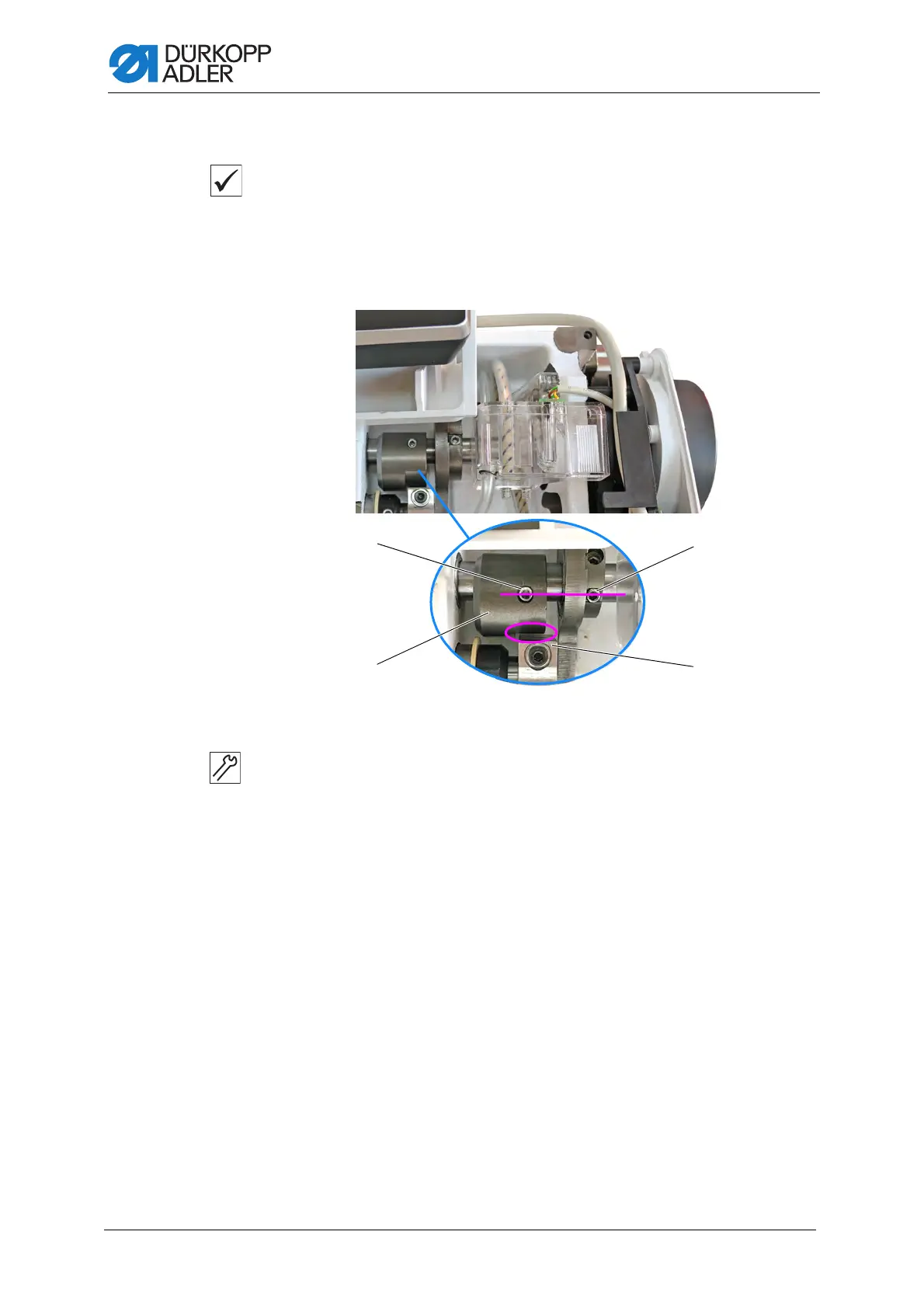

Fig. 28: Adjusting the compensating weight
To adjust the compensating weight:
1. Loosen the screw (1).
2. Adjust the compensating weight (2) in such a way that screw (1) and
screw (4) are at the same height.
Make sure that there is a gap between compensating weight (2) and
transmission lever (3).
3. Tighten the screw (1).
(1) - Screw
(2) - Compensating weight
(3) - Transmission lever
(4) - Screw
