Working basis
Service Instructions M-TYPE DELTA - 00.0 - 12/2019 29
3.5 Disassembling and assembling the throat plate

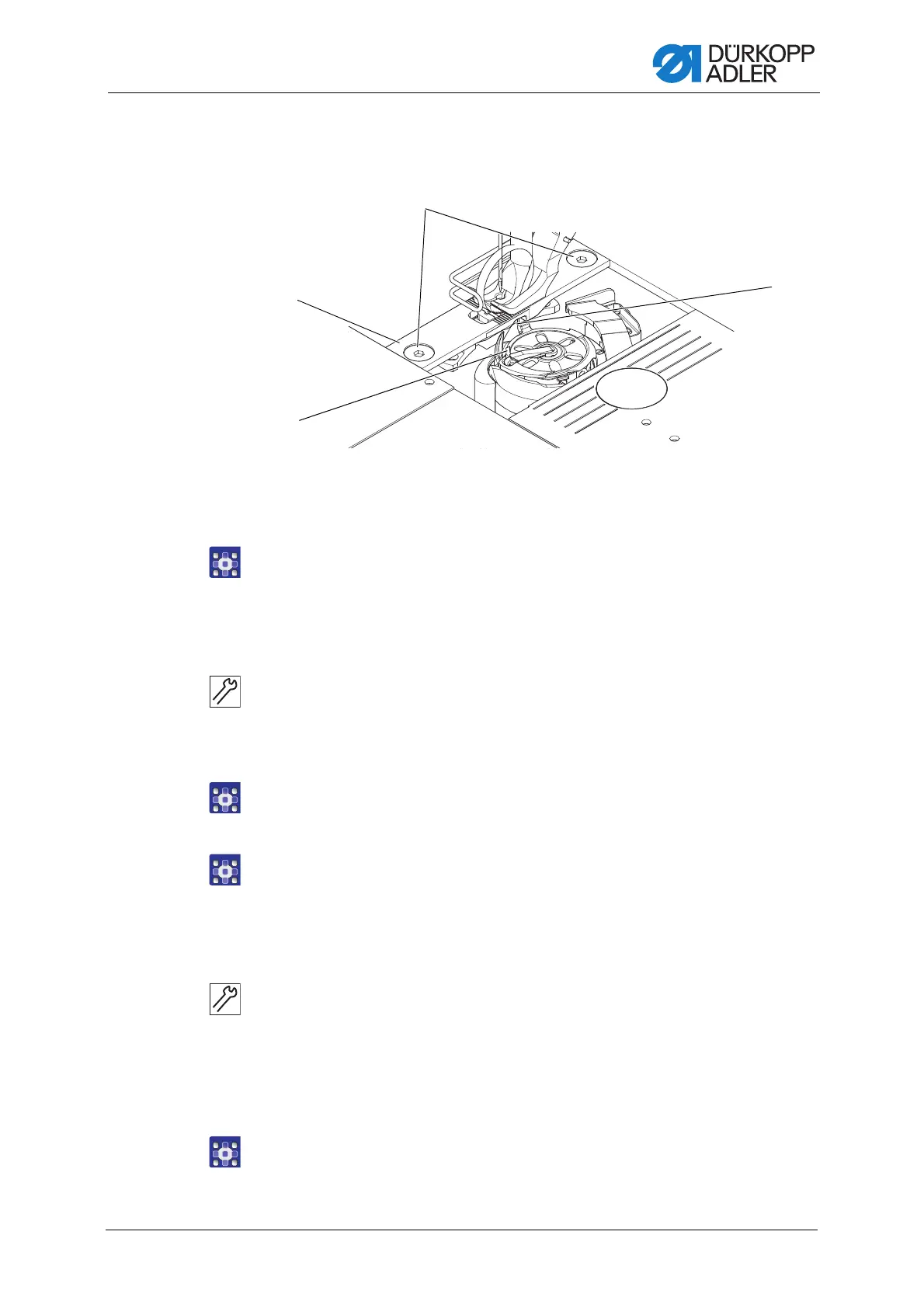

Fig. 18: Disassembling and assembling the throat plate
Disassembling the throat plate
To disassemble the throat plate:
1. Execute the service routine Feed dog > Position to
needle ( p. 14).
The software is used to define the necessary presettings on
the machine.
2. Press the Service Stop button.
3. Open the throat plate slides ( p. 28).
4. Loosen the screws (1).
5. Disassemble the throat plate (2).
6. Finish the service routine.
Assembling the throat plate
To assemble the throat plate:
1. Execute the service routine Feed dog > Position to
needle ( p. 14).
The software is used to define the necessary presettings on the
machine.
2. Press the Service Stop button.
3. Insert the throat plate (2).
Ensure that the nose (4) of the bobbin case (3) is in the cutout of
the throat plate (2).
4. Tighten the screws (1).
5. Close the throat plate slides ( p. 28).
6. Finish the service routine.
(1) - Screws
(2) - Throat plate
(3) - Bobbin case
(4) - Nose
